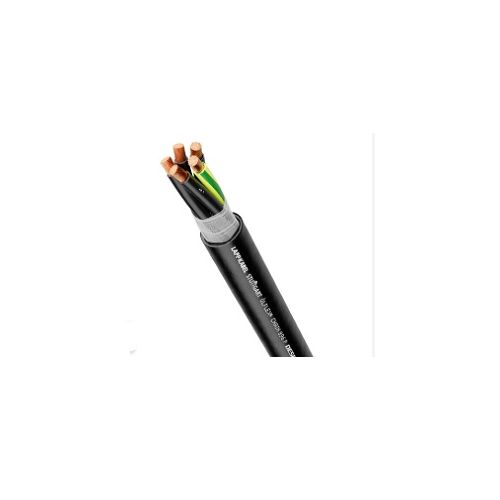

1023250 | OLFLEX CHAIN 896P 4 G 10 | Harsh Conditions Cable
Highly flexible, halogen-free power cable, Number of Conductors: 4, Conductor Cross section: 10.0mm², Cable Outer Diameter: 17.0mm, With GN-YE conductor
| Complete Electronics Part No. | 1023250 |
|---|---|
| Manufacturers Part No. | 1023250 |
| Series: | OLFLEX CHAIN 896P |
| Number of Conductors: | 4 |
| Conductor Cross Section: | 10.0mm² |
| Rated Voltage: | 600 / 1000V |
| Cable Type: | Highly Flexible cable |
| Shielding: | Not Shielded |
| Protective Conductor: | Yes |
| Cable Jacket: | PUR |
| Cable Length: | 500 Metres |
Description
1023250 | OLFLEX CHAIN 896P 4G10
Highly flexible, halogen-free multi core power cable
Number of Conductors: 4
Conductor Cross section: 10.0mm²
Cable Outer Diameter: 17.0mm
With GN-YE protective conductor
Conductor material: Bare Copper
Conductor design: IEC 60228 class 6: extra-fine wire
Nominal voltage: U0/U: 0,6/1 kV AC rms according to IEC
Core insulation: Polypropylene (PP)
Outer Sheath material: Polyurethane (PUR)
Cable Sheath colour: Black (RAL 9005)
Wrapping over stranding: Fleece wrapping
Shielded: No
Conductor design: IEC 60228 class 6: extra-fine wire
Nominal voltage: U0/U: 0,6/1 kV AC rms according to IEC
Core insulation: Polypropylene (PP)
Outer Sheath material: Polyurethane (PUR)
Cable Sheath colour: Black (RAL 9005)
Wrapping over stranding: Fleece wrapping
Shielded: No
Oil-resistant - Yes
Chemical resistant - Yes
UV-resistant - Yes
Ozone Resistant - Yes
Halogen Free - Yes
Flame retardant - Yes
Weather resistant - Yes
PWIS-free - Yes, acc. to VDMA 24364-B2-L
Chemical resistant - Yes
UV-resistant - Yes
Ozone Resistant - Yes
Halogen Free - Yes
Flame retardant - Yes
Weather resistant - Yes
PWIS-free - Yes, acc. to VDMA 24364-B2-L
Temperature Range Fixed Install: -50°C to +90°C
Temperature Range Flexing: -40°C to +90°C
Cable design allows highly flexible, continuously flexing use in moving machine parts and in the cable chain.
Can be used in dry, wet and especially in harsh and oily environments.
Extremely weather-resistant
The PUR outer sheath withstands high mechanical loads.
The PUR outer sheath is resistant to mineral oil-based lubricants and highly resistant to chemicals.
Suitable for outdoor use.
Flexible use at temperatures down to -40°C
Can be used in dry, wet and especially in harsh and oily environments.
Extremely weather-resistant
The PUR outer sheath withstands high mechanical loads.
The PUR outer sheath is resistant to mineral oil-based lubricants and highly resistant to chemicals.
Suitable for outdoor use.
Flexible use at temperatures down to -40°C
Cable Length: 500M
Lapp part number: 1023250
