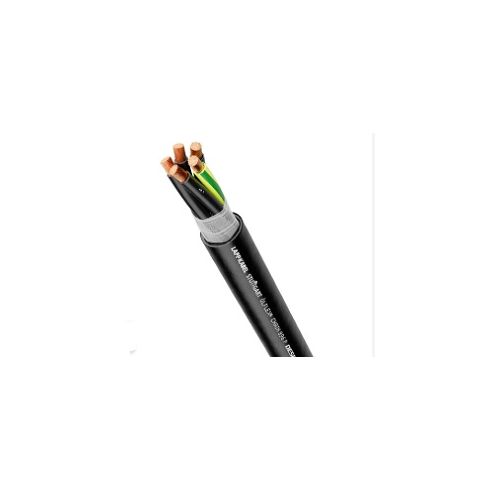

1023251 | OLFLEX CHAIN 896P 5G10 | Harsh Conditions Cable
Highly flexible, halogen-free power cable, Number of Conductors: 5, Conductor Cross section: 10.0mm², Cable Outer Diameter: 18.9mm, With GN-YE conductor
| Complete Electronics Part No. | 1023251 |
|---|---|
| Manufacturers Part No. | 1023251 |
| Series: | OLFLEX CHAIN 896P |
| Number of Conductors: | 5 |
| Conductor Size: | 10.0mm² |
| Rated Voltage: | 600 / 1000V |
| Cable Type: | Highly Flexible cable |
| Shielding: | Not Shielded |
| Protective Conductor: | Yes |
| Cable Jacket: | Polypropylene (PP) |
Description
OLFLEX CHAIN 896P 5G10
Highly flexible, halogen-free power cable
- Number of Conductors: 5
- Conductor Cross section: 10.0mm²
- Cable Outer Diameter: 18.9mm
- With GN-YE protective conductor
- Core insulation: polypropylene (PP)
- PUR outer sheath
- Sheath colour: Black (similar RAL 9005)
- Core ID: Black with white numbers
- Extra-fine wire strand bare copper wires (class 6)
- High oil-resistance
- Low-capacitance design
- Halogen-free materials
- Suitable for Indoor or Outdoor use
- Nominal Voltage 600 / 1000 V
- Temperature Range Fixed Install: -50°C to +90°C
- Temperature Range Flexing: -40°C to +90°C
- Cable Length: 50M
