1023278 | SERVO FD 7DSL 4G 1,5+(2x1,0)+(2x22AWG) | Power Chain Cable
Screened Hybrid servo cable, Number and size of conductors: 4G1,5 + (2 x 1,0)+(2 x 22AWG), Outer Diameter: 13.2mm, With GN-YE protective conductor
| Complete Electronics Part No. | 1023278 |
|---|---|
| Manufacturers Part No. | 1023278 |
| Number of Conductors: | 8 |
| Conductor Cross Section: | 1.5mm² |
| Power Chain Series | OLFLEX Servo FD 7DSL |
| Cable Length: | 50 Metres |
Description

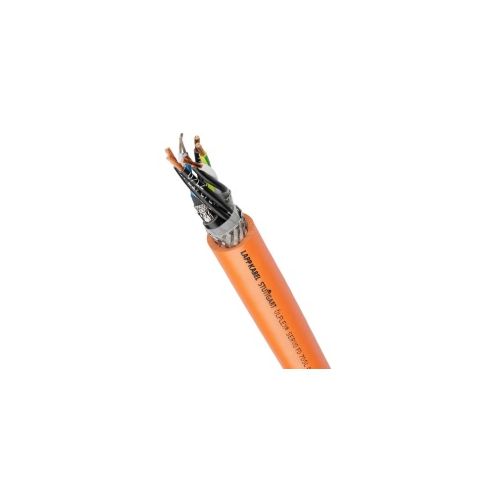

1023278| ÖLFLEX® SERVO FD 7DSL 4G1,5 + (2 x 1,0)+(2 x 22AWG)
Highly flexible and shielded multi core servo cable
Number and Size of Conductors: 4 G 1,5 + (2 x 1,0) + (2 x 22AWG)
Outer Cable Diameter: 13.2mm
With GN-YE protective conductor
Conductor material: Bare Copper
Conductor design: IEC 60228 class 6: extra-fine wire
Core insulation: Polypropylene (PP)
Screen: Tin-plated copper braiding
Core identification: Numbers, colours, alphanumeric
Outer Sheath material: Polyurethane (PUR)
Outer Sheath colour: Orange (RAL 2003)
Wrapping over stranding: Fleece wrapping
Conductor design: IEC 60228 class 6: extra-fine wire
Core insulation: Polypropylene (PP)
Screen: Tin-plated copper braiding
Core identification: Numbers, colours, alphanumeric
Outer Sheath material: Polyurethane (PUR)
Outer Sheath colour: Orange (RAL 2003)
Wrapping over stranding: Fleece wrapping
Nominal voltage Power Core: U0/U: 0,6/1 kV AC rms according to IEC
Nominal voltage Control Cores: U0/U: 0,6/1 kV AC rms according to IEC
Signal pair nominal voltage: 300 V AC rms / DC according to IEC
Current rating according to VDE 0298-4, VDE 0891-1
Temperature, fixed installation: -50°C to 90°C
Temperature, occasionally moved: -40°C to 90°C
Temperature, dynamic continuously flexing: -40°C to 90°C
Maximum bending cycles: 10,000,000
Nominal voltage Control Cores: U0/U: 0,6/1 kV AC rms according to IEC
Signal pair nominal voltage: 300 V AC rms / DC according to IEC
Current rating according to VDE 0298-4, VDE 0891-1
Temperature, fixed installation: -50°C to 90°C
Temperature, occasionally moved: -40°C to 90°C
Temperature, dynamic continuously flexing: -40°C to 90°C
Maximum bending cycles: 10,000,000
Chemical resistant - Yes
Flame retardant - Yes acc. to IEC 60332-1-2
Halogen Free - Yes (IEC 60754-1)
Hydrolysis resistant: - Yes
Low-adhesion sheath surface - Yes
MUD resistance - Yes (IEC 60092-360, Annex C+D)
Oil-resistant - Yes (EN 50363-10-2)
Ozone resistant: - Yes (EN 50396, method B)
PWIS-free - Yes
UV-resistant - Yes
Water resistant: - No
Weather resistant: - Yes
Flame retardant - Yes acc. to IEC 60332-1-2
Halogen Free - Yes (IEC 60754-1)
Hydrolysis resistant: - Yes
Low-adhesion sheath surface - Yes
MUD resistance - Yes (IEC 60092-360, Annex C+D)
Oil-resistant - Yes (EN 50363-10-2)
Ozone resistant: - Yes (EN 50396, method B)
PWIS-free - Yes
UV-resistant - Yes
Water resistant: - No
Weather resistant: - Yes
The cable design allows flexible, continuously flexing use
Durable cable chain use with long travel distances or high acceleration
The PUR outer sheath withstands high mechanical loads.
The PUR outer sheath is resistant to mineral oil-based lubricants and highly resistant to chemicals.
Can be used in dry, wet and especially in harsh and oily environments
Durable cable chain use with long travel distances or high acceleration
The PUR outer sheath withstands high mechanical loads.
The PUR outer sheath is resistant to mineral oil-based lubricants and highly resistant to chemicals.
Can be used in dry, wet and especially in harsh and oily environments
For environments where electromagnetic compatibility (EMC) is required.
Suitable for outdoor use
For connecting frequency converters and servo motors
For simultaneous power supply, signal and data transmission (one-cable technology)
CE marked, UKCA marked, EAC certified, UL recognised, cUR recognized
Suitable for outdoor use
For connecting frequency converters and servo motors
For simultaneous power supply, signal and data transmission (one-cable technology)
CE marked, UKCA marked, EAC certified, UL recognised, cUR recognized
Cable Length: 50M
Lapp part number: 1023278
