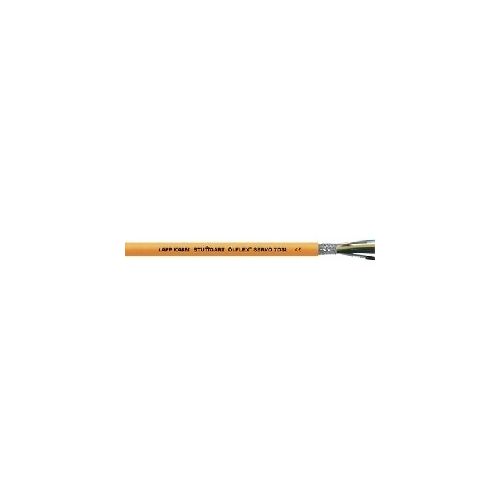

1023290 | OLFLEX SERVO 7DSL 4G1,5+(2X22AWG) | Servo Cable

Low capacitive hybrid servo cable with PVC outer sheath for static use, certified for North America
More Information
Complete Electronics Part No 1023290
Manufacturers Part No. 1023290
Number of Conductors 4
Conductor Size 1.5mm²
Description

OLFLEX SERVO 7DSL 4G1,5+(2X22AWG)

Low capacitive hybrid servo cable

  • Number of cores: 4 + 2
  • Core Diameter: 1.5mm² and 22AWG
  • Cable Outer Diameter: 11.2mm
  • Suitable for Hiperface DSL motor-feedback systems
  • Oil-resistant
  • EMC-optimised design
  • Core insulation: polypropylene (PP)
  • PVC outer sheath, orange (RAL 2003)
  • Tinned-copper braiding
  • GN/YE protective conductor
  • Maximum DSL transmission length: 100m
  • Fine-wire, bare copper conductor
  • Nominal Voltage: IEC: U0/U: 600/1000 V
  • Reel Length: 50M
