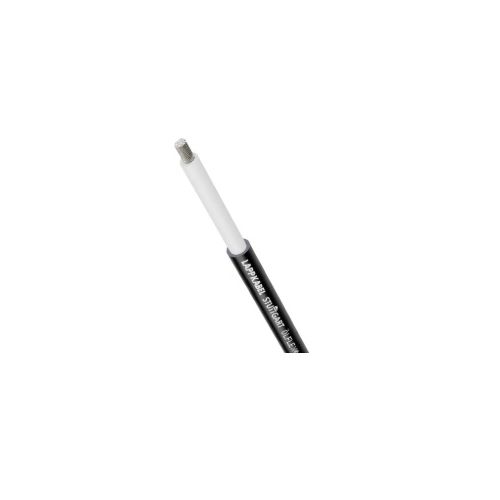

1023623 | OLFLEX SOLAR XLWP 1X10 WH/BK-RD | PV Cable
Single Core Photovoltaic Cable, With optimized performance in water, Number of Conductors 1, Conductor Cross Section: 10.0mm²,Outer Diameter: 7.6mm
| Complete Electronics Part No. | 1023623 |
|---|---|
| Manufacturers Part No. | 1023623 |
| Number of Conductors: | 1 |
| Conductor Cross Section: | 10.0mm² |
| Rated Voltage: | 1.0 kV (Nominal) |
| Special Application Series: | OLFLEX Solar XLWP |
| Cable Type: | Suitable for Direct Burial |
| Cable Length: | 100 Metres |
Description
1023623 | OLFLEX SOLAR XLWP 1X10 WH/BK-RD
Single Core Photovoltaic Cable
With optimized performance in water
Number of Conductors 1
Conductor Cross Section: 10.0mm²
Cable Outer Diameter: 7.6mm
Replacement for OLFLEX Solar XLR WP
Conductor: Fine-wire strands of tinned copper
Colour of core insulation: white
Outer sheath colour: Black with Red stripe
Weather/UV-resistant acc. to EN 50618, appendix E
Ozone-resistant according to EN 50396
Halogen-free and flame-retardant
Good notch and abrasion resistance
Suitable for direct burial
For floating PV / canal top installations
Robust against mechanical impacts
Nominal Voltage: 1.0 kV
Temperature Range (Fixed Install): -40°C to 120°C
Cable Length: 100M
Lapp part number: 1023623
