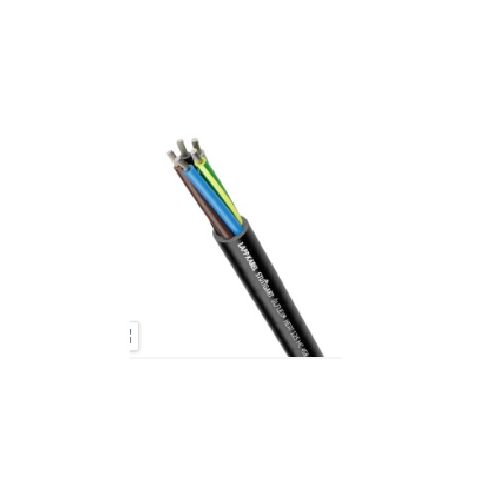

1024308 | ÖLFLEX HEAT 125 MC 3G0.75 | Multicore Cable
Power and Control Cable, Number of Conductors: 3, Conductor Diameter: 0.75mm², Nominal Voltage: U0/U: 300/500 V
| Complete Electronics Part No. | 1024308 |
|---|---|
| Manufacturers Part No. | 1024308 |
| Number of Conductors | 3 |
| Conductor Size | 0.75mm² |
| Rated Voltage: | 300 / 500 V |
| Special Application Series | OLFLEX HEAT 125 MC |
| Shielding: | Not Shielded |
| Protective Conductor | Yes |
Description
Power and Control Cable
Number of Conductors: 3
- Conductor Diameter: 0.75mm²
- Nominal Voltage: U0/U: 300/500 V
- Cable Outer Diameter: 6.8mm
- With Protective Conductor
- Fine-wire strand made of bare copper wires
- Cores twisted in layers
- Halogen-free (IEC 60754-1)
- Low smoke density (IEC 61034-2)
- Flame-retardant (IEC 60332-1-2
- Oil and UV resistant
- For outdoor applications
- Core ID: Colour Coded
- Outer Sheath Colour: Black
- Temperature Range Fixed Install: Short -55°C to +125°C
- Cable Length: 100Metres
