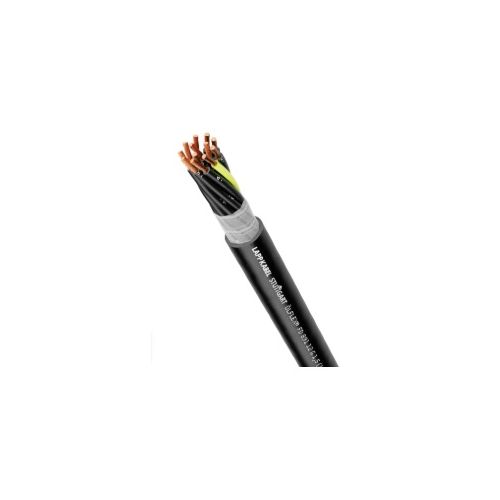

1026405 | OLFLEX FD 891 5G2,5 | Various Applications
Highly Flexible PVC Control Cable, Number of Conductors: 5, Conductor Cross section: 2.5mm², Cable Outer Diameter: 11mm, With GN-YE protective conductor
| Complete Electronics Part No. | 1026405 |
|---|---|
| Manufacturers Part No. | 1026405 |
| Series: | OLFLEX FD 891 |
| Number of Conductors: | 5 |
| Conductor Cross Section: | 2.5mm² |
| Rated Voltage: | 300 / 500 V |
| Cable Type: | Highly Flexible cable |
| Shielding: | Not Shielded |
| Protective Conductor: | Yes |
| Cable Jacket: | PVC |
| Cable Length: | 50 Metres |
Description
1026405 | ÖLFLEX® FD891 5G2.5
Highly flexible PVC multi core control cable
Number of Conductors: 5
Conductor Cross section: 2.5mm²
Cable Outer Diameter: 11mm
With GN-YE protective conductor
Conductor material: Bare Copper
Core colour code: Black with white numbers
Conductor design: IEC 60228 class 6: extra-fine wire
Core insulation: Polyvinylchloride (PVC)
Outer Sheath material: Polyvinylchloride (PVC)
Outer Sheath colour: Black (RAL 9005)
Wrapping over stranding: Fleece wrapping
Core colour code: Black with white numbers
Conductor design: IEC 60228 class 6: extra-fine wire
Core insulation: Polyvinylchloride (PVC)
Outer Sheath material: Polyvinylchloride (PVC)
Outer Sheath colour: Black (RAL 9005)
Wrapping over stranding: Fleece wrapping
Oil-resistant - Yes acc. to DIN EN 50363-4-1 (TM5)
Highly Chemical resistant - Yes
UV-resistant - Yes EN ISO 4892-2, EN 50525-1 (cables with a black sheath are suitable for permanent outdoor use)
Halogen Free - No
Flame retardant - Yes IEC 60332-1-2, UL VW-1
Weather resistant - Yes
PWIS-free - Yes
Highly Chemical resistant - Yes
UV-resistant - Yes EN ISO 4892-2, EN 50525-1 (cables with a black sheath are suitable for permanent outdoor use)
Halogen Free - No
Flame retardant - Yes IEC 60332-1-2, UL VW-1
Weather resistant - Yes
PWIS-free - Yes
Nominal voltage: U0/U: 300/500 V AC rms according to IEC
Operating voltage of 600V rms according to UL AWM
Temperature, fixed installation: -40°C to 90°C according to IEC
Temperature, occasionally moved: -5°C to 90°C according to IEC
Temperature, dynamic continuously flexing: -5°C to 90°C according to IEC
Maximum bending cycles: 7,000,000
Operating voltage of 600V rms according to UL AWM
Temperature, fixed installation: -40°C to 90°C according to IEC
Temperature, occasionally moved: -5°C to 90°C according to IEC
Temperature, dynamic continuously flexing: -5°C to 90°C according to IEC
Maximum bending cycles: 7,000,000
The cable design allows flexible, continuously flexing
Suitable for medium mechanical stress
The PVC outer sheath is resistant to acids and alkalis and has limited oil resistance
Can be used in dry or wet environments
For use in control, regulating and measurement circuits
Suitable for outdoor use, subject to the temperature range
CE marked, UKCA marked, EAC certified, UL recognised
Suitable for medium mechanical stress
The PVC outer sheath is resistant to acids and alkalis and has limited oil resistance
Can be used in dry or wet environments
For use in control, regulating and measurement circuits
Suitable for outdoor use, subject to the temperature range
CE marked, UKCA marked, EAC certified, UL recognised
Cable Length: 50M
Lapp part number: 1026405
