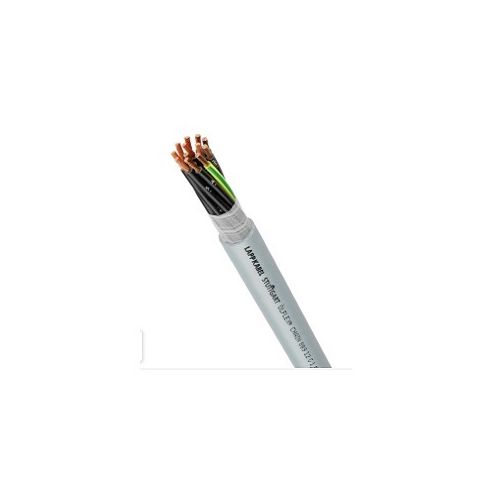

1026703 | OLFLEX CHAIN 809 5G0,5 | Various Applications
Highly Flexible PVC Control Cable, Number of Conductors: 5, Conductor Cross section: 0.5mm², Cable Outer Diameter: 6.5mm, With GN-YE protective conductor
| Complete Electronics Part No. | 1026703 |
|---|---|
| Manufacturers Part No. | 1026703 |
| Series: | OLFLEX CHAIN 809 |
| Number of Conductors: | 5 |
| Conductor Cross Section: | 0.5mm² |
| Rated Voltage: | 300 / 500 V |
| Cable Type: | Highly Flexible cable |
| Shielding: | Not Shielded |
| Protective Conductor: | Yes |
| Cable Jacket: | PVC |
| Cable Length: | 100 Metres |
Description
1026703 | ÖLFLEX® Chain 809 5G0.5
Highly flexible non shielded PVC multi core control cable
Number of Conductors: 5
Conductor Cross section: 0.5mm²
Cable Outer Diameter: 6.5mm
With GN-YE protective conductor
Conductor material: Bare Copper
Core colour code: Black with white numbers
Conductor design: IEC 60228 class 6: extra-fine wire
Core insulation: Polyvinylchloride (PVC)
Outer Sheath material: Polyvinylchloride (PVC)
Outer Sheath colour: Grey (RAL 7001)
Wrapping over stranding: Fleece wrapping
Core colour code: Black with white numbers
Conductor design: IEC 60228 class 6: extra-fine wire
Core insulation: Polyvinylchloride (PVC)
Outer Sheath material: Polyvinylchloride (PVC)
Outer Sheath colour: Grey (RAL 7001)
Wrapping over stranding: Fleece wrapping
Oil-resistant - Yes acc. to EN 50290-2-22: TM 54
Highly Chemical resistant - Yes
UV-resistant - No
Halogen Free - No
Flame retardant - Yes IEC 60332-1-2, UL VW-1
Low-adhesion sheath surface: Yes
PWIS-free - Yes
Highly Chemical resistant - Yes
UV-resistant - No
Halogen Free - No
Flame retardant - Yes IEC 60332-1-2, UL VW-1
Low-adhesion sheath surface: Yes
PWIS-free - Yes
Nominal voltage: U0/U: 300/500 V AC rms according to IEC
Operating voltage of 1000V rms according to UL AWM
Temperature, fixed installation: -40°C to 70°C according to IEC
Temperature, occasionally moved: 0°C to 70°C according to IEC
Temperature, dynamic continuously flexing: 0°C to 70°C according to IEC
Maximum bending cycles: 3,000,000
Operating voltage of 1000V rms according to UL AWM
Temperature, fixed installation: -40°C to 70°C according to IEC
Temperature, occasionally moved: 0°C to 70°C according to IEC
Temperature, dynamic continuously flexing: 0°C to 70°C according to IEC
Maximum bending cycles: 3,000,000
The cable design allows flexible, continuously flexing
Suitable for light to medium mechanical stress
Durable cable chain use with moderate travel distances or acceleration
The PVC outer sheath is resistant to acids and alkalis and has limited oil resistance
Suitable for light to medium mechanical stress
Durable cable chain use with moderate travel distances or acceleration
The PVC outer sheath is resistant to acids and alkalis and has limited oil resistance
Can be used in dry or wet environments
For use in control, regulating and measurement circuits
Classified fire behaviour according to EU Directive 305/2011
CE marked, UKCA marked, EAC certified, UL recognised, cUR recognised
For use in control, regulating and measurement circuits
Classified fire behaviour according to EU Directive 305/2011
CE marked, UKCA marked, EAC certified, UL recognised, cUR recognised
Cable Length: 100M
Lapp part number: 1026703
