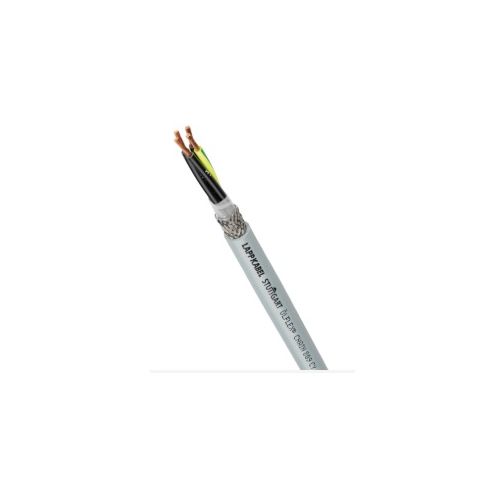

1026753 | OLFLEX CHAIN 809 CY 4 G 0,5 | Various Applications
Highly Flexible Screened PVC Control Cable, Number of Conductors:4 , Conductor Cross section: 0.5mm², Cable Outer Diameter: 6.6mm, With GN-YE protective conductor
| Complete Electronics Part No. | 1026753 |
|---|---|
| Manufacturers Part No. | 1026753 |
| Series: | OLFLEX CHAIN 809 CY |
| Number of Conductors: | 4 |
| Conductor Size: | 0.5mm² |
| Rated Voltage: | 300 / 500 V |
| Cable Type: | Highly Flexible cable |
| Shielding: | Shielded / Screened |
| Protective Conductor: | Yes |
| Cable Jacket: | PVC |
Description
OLFLEX CHAIN 809 CY 4 G 0,5
Highly Flexible Screened PVC Control Cable
- Number of Conductors:4
- Conductor Cross section: 0.5mm²
- Cable Outer Diameter: 6.6mm
- With GN-YE protective conductor
- Core Insulation: PVC
- PVC Outer Sheath
- Outer Sheath Colour: Grey (similar to RAL 7001)
- Core ID: Black with white numbers
- Torsion Resistant
- Oil Resistant
- Screening: Tinned-copper braiding
- EMC compliant copper screening
- Cores twisted in layers
- Nominal Voltage: 300 / 500V
- Temperature Range Fixed Install: -40°C to +70°C
- Temperature Range Flexing: -0°C to +70°C
- Cable Length: 50M
