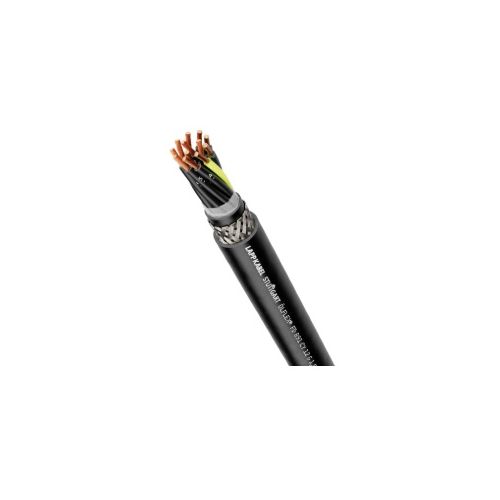

1027504 | OLFLEX FD 891 CY 4 G 4 | Various Applications
Highly flexible, screened control cable, No. of Conductors: 4, Conductor Cross section: 4.0mm², Outer Diameter: 14mm, With GN-YE protective conductor
| Complete Electronics Part No. | 1027504 |
|---|---|
| Manufacturers Part No. | 1027504 |
| Series: | OLFLEX FD 891 CY |
| Number of Conductors: | 4 |
| Conductor Size: | 4.0mm² |
| Rated Voltage: | 300 / 500 V |
| Cable Type: | Highly Flexible cable |
| Shielding: | Shielded / Screened |
| Protective Conductor: | Yes |
| Cable Jacket: | PVC |
| Cable Length: | 500 Metres |
Description
OLFLEX FD 891 CY 4 G 4
Highly flexible, screened control cable
Number of Conductors: 4
Conductor Cross section: 4.0mm²
Cable Outer Diameter: 14mm
With GN-YE protective conductor
Conductor material: Bare Copper
Shield: Tin-plated copper braiding
Core colour code: Black with white numbers
Conductor design: IEC 60228 class 6: extra-fine wire
Core insulation: Polyvinylchloride (PVC)
Inner Sheath: PVC compound
Inner Sheath colour: Black (RAL 9005)
Outer Sheath material: Polyvinylchloride (PVC)
Outer Sheath colour: Black (RAL 9005)
Wrapping over stranding: Fleece wrapping
Shield: Tin-plated copper braiding
Core colour code: Black with white numbers
Conductor design: IEC 60228 class 6: extra-fine wire
Core insulation: Polyvinylchloride (PVC)
Inner Sheath: PVC compound
Inner Sheath colour: Black (RAL 9005)
Outer Sheath material: Polyvinylchloride (PVC)
Outer Sheath colour: Black (RAL 9005)
Wrapping over stranding: Fleece wrapping
Oil-resistant - Yes acc. to DIN EN 50363-4-1 (TM5)
Highly Chemical resistant - Yes
UV-resistant - Yes EN ISO 4892-2, EN 50525-1 (cables with a black sheath are suitable for permanent outdoor use)
Halogen Free - No
Flame retardant - Yes IEC 60332-1-2, UL VW-1
Weather resistant - Yes
PWIS-free - Yes
Highly Chemical resistant - Yes
UV-resistant - Yes EN ISO 4892-2, EN 50525-1 (cables with a black sheath are suitable for permanent outdoor use)
Halogen Free - No
Flame retardant - Yes IEC 60332-1-2, UL VW-1
Weather resistant - Yes
PWIS-free - Yes
Nominal voltage: U0/U: 300/500 V AC rms according to IEC
Operating voltage of 600V rms according to UL AWM
Temperature, fixed installation: -40°C to 90°C according to IEC
Temperature, occasionally moved: -5°C to 90°C according to IEC
Temperature, dynamic continuously flexing: -5°C to 90°C according to IEC
Maximum bending cycles: 7,000,000
Operating voltage of 600V rms according to UL AWM
Temperature, fixed installation: -40°C to 90°C according to IEC
Temperature, occasionally moved: -5°C to 90°C according to IEC
Temperature, dynamic continuously flexing: -5°C to 90°C according to IEC
Maximum bending cycles: 7,000,000
The cable design allows flexible, continuously flexing
Suitable for medium mechanical stress
The PVC outer sheath is resistant to acids and alkalis and has limited oil resistance
Can be used in dry or wet environments
Suitable for medium mechanical stress
The PVC outer sheath is resistant to acids and alkalis and has limited oil resistance
Can be used in dry or wet environments
For use in control, regulating and measurement circuits
Ideal protection against electromagnetic interference thanks to copper screening braiding
Suitable for outdoor use, subject to the temperature range
CE marked, UKCA marked, EAC certified, UL recognised
Ideal protection against electromagnetic interference thanks to copper screening braiding
Suitable for outdoor use, subject to the temperature range
CE marked, UKCA marked, EAC certified, UL recognised
Cable Length: 50M
Lapp part number: 1027504
