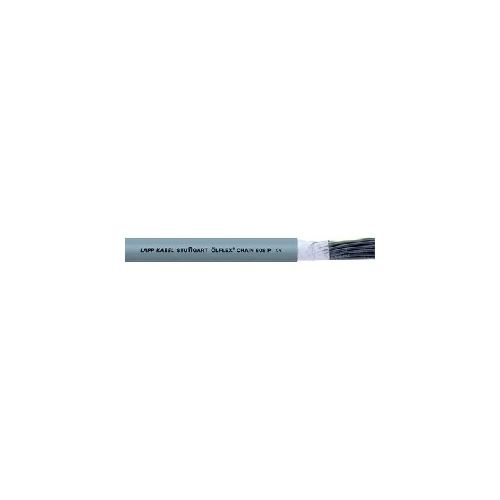

1027730 | OLFLEX CHAIN 808 P 18G1,5 | Harsh Conditions Cable
Highly flexible control cable, Number of Conductors: 18, Conductor Cross section: 1.5mm², Cable Outer Diameter: 14.9mm, With GN-YE protective conductor
| Complete Electronics Part No. | 1027730 |
|---|---|
| Manufacturers Part No. | 1027730 |
| Series: | OLFLEX CHAIN 808 P |
| Number of Conductors: | 18 |
| Conductor Cross Section: | 1.5mm² |
| Rated Voltage: | 300 / 500 V |
| Cable Type: | Control Cable |
| Shielding: | Not Shielded |
| Protective Conductor: | Yes |
| Cable Jacket: | PUR |
Description
OLFLEX CHAIN 808 P 18G1,5
Highly flexible control cable
*** Product Discontinued***
- Number of Conductors: 18
- Conductor Cross section: 1.5mm²
- Cable Outer Diameter: 14.9mm
- With GN-YE protective conductor
- Core Insulation: PVC
- PUR Outer Sheath
- Outer Sheath Colour: Grey (similar to RAL 7001)
- Fine-wire, bare copper conductor
- UV Resistant
- Highly Oil Resistance
- Abrasion and notch-resistant
- Core ID: Black with white numbers
- Nominal Voltage U0/U: 300/500 V
- Non Woven Wrapping
- Temperature Range Fixed Install: -40°C to +80°C
- Temperature Range Flexing: -5°C to +70°C
- Cable Length: 2000M
