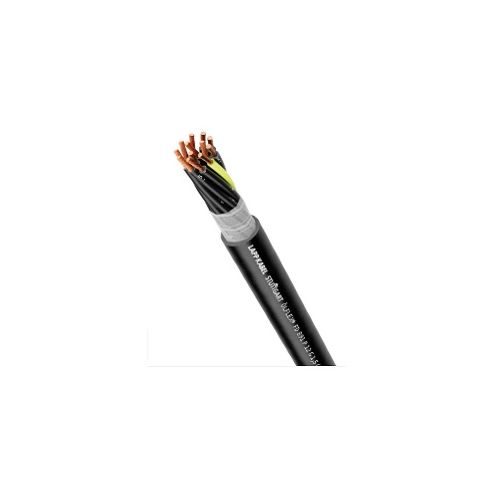

1028312 | OLFLEX FD 891 P 12G1,5 | Harsh Conditions Cable
Highly flexible Power and Control cable , Number of Conductors: 12, Conductor Cross section: 1.5mm², Cable Outer Diameter: 13.9mm, With GN-YE conductor
| Complete Electronics Part No. | 1028312 |
|---|---|
| Manufacturers Part No. | 1028312 |
| Series: | OLFLEX FD 891 P |
| Number of Conductors: | 12 |
| Conductor Cross Section: | 1.5mm² |
| Rated Voltage: | 300 / 500 V |
| Cable Type: | Highly Flexible cable |
| Shielding: | Not Shielded |
| Protective Conductor: | Yes |
| Cable Jacket: | PUR |
| Cable Length: | 50 Metres |
Description
1028312 | ÖLFLEX® FD 891 P 12G 1.5
Highly flexible, Chemical resistant, multi core control cable
Number of Conductors: 12
Conductor Cross section: 1.5mm²
Cable Outer Diameter: 13.9mm
With GN-YE protective conductor
Conductor material: Bare Copper
Core colour code: Black with white numbers
Conductor design: IEC 60228 class 6: extra-fine wire
Core insulation: Polyvinylchloride (PVC)
Outer Sheath material: Polyurethane (PUR)
Outer Sheath colour: Black (RAL 9005)
Wrapping over stranding: Fleece wrapping
Core colour code: Black with white numbers
Conductor design: IEC 60228 class 6: extra-fine wire
Core insulation: Polyvinylchloride (PVC)
Outer Sheath material: Polyurethane (PUR)
Outer Sheath colour: Black (RAL 9005)
Wrapping over stranding: Fleece wrapping
Oil-resistant - Yes
Highly Chemical resistant - Yes
UV-resistant - Yes
Weather Resistant - Yes
Hydrolysis resistant - Yes
Halogen Free - No
Flame retardant - Yes
Weather resistant - Yes
PWIS-free - Yes, acc. to VDMA 24364-B2-L
Highly Chemical resistant - Yes
UV-resistant - Yes
Weather Resistant - Yes
Hydrolysis resistant - Yes
Halogen Free - No
Flame retardant - Yes
Weather resistant - Yes
PWIS-free - Yes, acc. to VDMA 24364-B2-L
Nominal voltage: U0/U: 300/500 V AC rms according to IEC
Current rating according to VDE 0298-4
Temperature, fixed installation: -40°C to 80°C according to IEC
Temperature, occasionally moved: -5°C to 80°C according to IEC
Temperature, dynamic continuously flexing: -5°C to 80°C according to IEC
Maximum bending cycles: 7,000,000
Current rating according to VDE 0298-4
Temperature, fixed installation: -40°C to 80°C according to IEC
Temperature, occasionally moved: -5°C to 80°C according to IEC
Temperature, dynamic continuously flexing: -5°C to 80°C according to IEC
Maximum bending cycles: 7,000,000
Can be used in dry, damp or wet environments
The PUR outer sheath is resistant to mineral oil-based lubricants and highly resistant to chemicals
The PUR outer sheath withstands high mechanical loads
The outer sheath material is resistant to abrasion, notches and cuts
The PUR outer sheath is resistant to mineral oil-based lubricants and highly resistant to chemicals
The PUR outer sheath withstands high mechanical loads
The outer sheath material is resistant to abrasion, notches and cuts
Classified fire behaviour according to EU Directive 305/2011
Cable design allows highly flexible, continuously flexing use
Operating voltage of 600V rms according to UL //CSA
CE marked, UKCA marked, EAC certified, UL recognised
Cable design allows highly flexible, continuously flexing use
Operating voltage of 600V rms according to UL //CSA
CE marked, UKCA marked, EAC certified, UL recognised
Cable Length: 50M
Lapp part number: 1028312
