10382000 | MCS 3 CM | Lapp Epic® High Voltage Module
Lapp Epic® High Voltage Module MCS 3 CM
| Complete Electronics Part No. | 10382000 |
|---|---|
| Manufacturers Part No. | MCS 3 CM |
| Lapp Modules | High Voltage Module |
Description
10382000 / MCS 3 CM

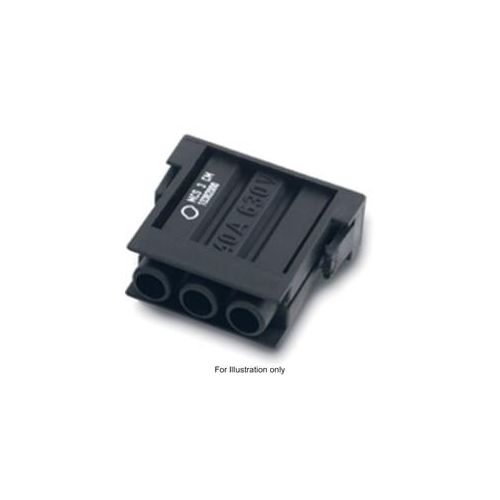

Lapp Epic® High Voltage Module MCS 3 CM
- Epic®MC Module: High Voltage
- Number of Contacts: 3
- Rated Voltage: IEC 630V
- Rated Current: 25A
- Termination: Crimp
- Contact Type:Male
- Contacts: Copper Alloy, Hard Silver Plated
- Connection Cross Section : 1.5 - 10mm²
- Temperature Range: -40°C to +125°C
- Suitable Housing: Epic MCR Frame
- Suitable Contact: Epic® Modular 2.5 Stamped
