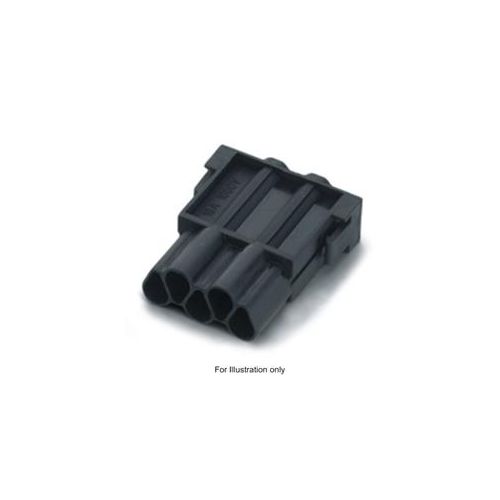

10383200 | MCS 5 CG | Lapp Epic® High Voltage Module
Lapp Epic® High Voltage Module MCS 5 CG
| Complete Electronics Part No. | 10383200 |
|---|---|
| Manufacturers Part No. | MCS 5 CG |
| Lapp Modules | High Voltage Module |
Description
10383200 / MCS 5 CG
Lapp Epic® High Voltage Module MCS 5 CG
- Epic®MC Module: High Voltage
- Number of Contacts: 4+PE
- Rated Voltage: 1000V
- Rated Current: 16A
- Termination: Crimp
- Contact Type:Male
- Contacts: Copper Alloy, Hard Silver Plated
- Connection Cross Section : 0.5 - 2.5mm²
- Temperature Range: -40°C to +125°C
- Suitable Housing: Epic MCR Frame
- Suitable Contact: Epic® Modular 2.5 Stamped
