10399000 | MCS 4 CM | Lapp Epic® High Voltage Module

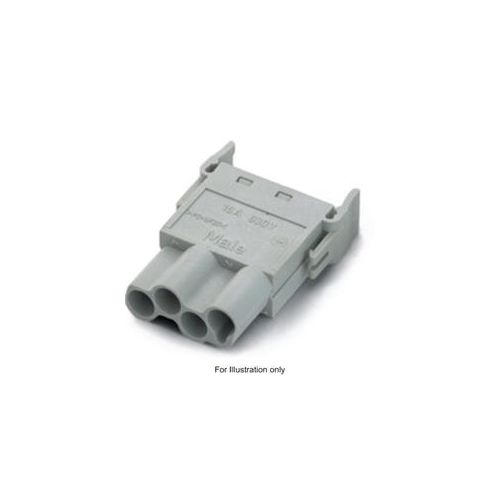

Lapp Epic® High Voltage Module MCS 4 CM
| Complete Electronics Part No. | 10399000 |
|---|---|
| Manufacturers Part No. | MCS 4 CM |
| Lapp Modules | High Voltage Module |
Description
10399000 / MCS 4 CM
Lapp Epic® High Voltage Module MCS 4 CM
- Epic®MC Module: High Voltage
- Number of Contacts: 4
- Rated Voltage: IEC 630V
- Rated Current: 40A
- Termination: Crimp
- Contact Type:Male
- Contacts: Copper Alloy, Hard Silver Plated
- Connection Cross Section : 0.5 - 4mm²
- Temperature Range: -40°C to +125°C
- Suitable Housing: Epic MCR Frame
- Suitable Contact: Epic® Modular 2.5 Stamped
