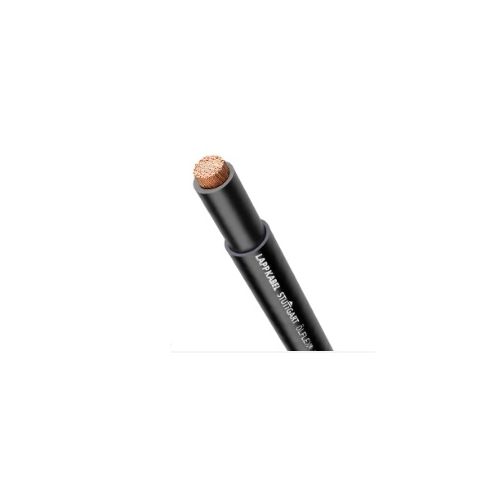

1062907 | OLFLEX CHAIN 809SC 1X25 | Various Applications
Highly flexible, single core cable, Number of Conductors: 1, Conductor Cross section: 25mm², Cable Outer Diameter: 11.3mm, Core Colour: Black
| Complete Electronics Part No. | 1062907 |
|---|---|
| Manufacturers Part No. | 1062907 |
| Series: | OLFLEX CHAIN 809 SC |
| Number of Conductors: | 1 |
| Conductor Cross Section: | 25mm² |
| Rated Voltage: | 600 / 1000V |
| Cable Type: | Single Core Cable |
| Shielding: | Not Shielded |
| Protective Conductor: | No |
| Cable Jacket: | PVC |
| Cable Length: | 50 Metres |
Description
1062907 | ÖLFLEX® CHAIN 809 SC 1x25
Highly flexible non shielded PVC single core control cable
Number of Conductors: 1
Conductor Cross section: 25mm²
Cable Outer Diameter: 11.3mm
Conductor material: Bare Copper
Conductor design: IEC 60228 class 5: extra-fine wire
Core insulation: Polyvinylchloride (PVC)
Core Insulation colour: Black
Outer Sheath material: Polyvinylchloride (PVC)
Outer Sheath colour: Black (RAL 9005)
Conductor design: IEC 60228 class 5: extra-fine wire
Core insulation: Polyvinylchloride (PVC)
Core Insulation colour: Black
Outer Sheath material: Polyvinylchloride (PVC)
Outer Sheath colour: Black (RAL 9005)
Nominal voltage: U0/U: 0,6/1 kV AC rms according to IEC
Rated voltage of 600V rms according to cRU AWM
Temperature, fixed installation: -40°C to 80°C according to IEC
Temperature, occasionally moved: 0°C to 70°C according to IEC
Temperature, dynamic continuously flexing: 0°C to 70°C according to IEC
Maximum bending cycles: 3,000,000
Rated voltage of 600V rms according to cRU AWM
Temperature, fixed installation: -40°C to 80°C according to IEC
Temperature, occasionally moved: 0°C to 70°C according to IEC
Temperature, dynamic continuously flexing: 0°C to 70°C according to IEC
Maximum bending cycles: 3,000,000
Oil-resistant - Yes acc. to EN 50290-2-22: TM 54
Chemical resistant - No
UV-resistant - Yes, EN 50525-1 (cables with a black sheath are suitable for permanent outdoor use)
Halogen Free - No
Flame retardant - Yes IEC 60332-1-2
Low-adhesion sheath surface: Yes
PWIS-free - Yes
Chemical resistant - No
UV-resistant - Yes, EN 50525-1 (cables with a black sheath are suitable for permanent outdoor use)
Halogen Free - No
Flame retardant - Yes IEC 60332-1-2
Low-adhesion sheath surface: Yes
PWIS-free - Yes
The cable design allows flexible, continuously flexing use
Suitable for light to medium mechanical stress
Durable cable chain use with moderate travel distances or acceleration
Also suitable for fixed wiring in control cabinets
Suitable for light to medium mechanical stress
Durable cable chain use with moderate travel distances or acceleration
Also suitable for fixed wiring in control cabinets
Can be used in dry, damp or wet interiors
Specially designed for energy circuits of servo motors driven by frequency converters
The PVC outer sheath is resistant to acids and alkalis and has limited oil resistance
Suitable for outdoor use, subject to the temperature range
CE marked, UKCA marked, EAC certified, UL recognised, cUR recognised
Specially designed for energy circuits of servo motors driven by frequency converters
The PVC outer sheath is resistant to acids and alkalis and has limited oil resistance
Suitable for outdoor use, subject to the temperature range
CE marked, UKCA marked, EAC certified, UL recognised, cUR recognised
Cable Length: 50M
Lapp part number: 1062907
