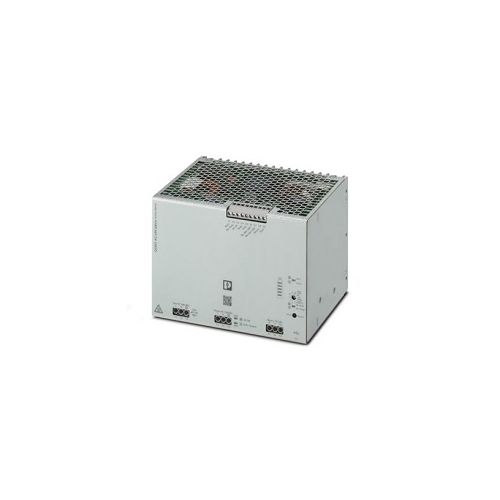

1067327 | QUINT4-UPS/1AC/1AC/500VA/USB | UPS

QUINT AC-USV, DIN rail mounting, input: 120 V AC / 230 V AC, output: 120 V AC / 230 V AC / 500 VA. output: 120 V AC / 500 VA. output: 230 V AC / 500 VA

More Information
Complete Electronics Part No. 1067327
Manufacturers Part No. 1067327
Phoenix Ethernet Series: Quint UPS
Input Voltage AC 100V to 240V
Operating Voltage: AC 110 - 230V
Output Type 500 VA
Description

QUINT4-UPS/1AC/1AC/500VA/USB

Uninterruptible Power Supply

Input Data

Input voltage: 120 V AC / 230 V AC
Input voltage range: 90 V AC ... 264 V AC
Permissible backup fuse max. 25 A
Frequency range  45 Hz ... 65 Hz


Output Data (Mains Operation)

Nominal output voltage: 120 V AC / 230 V AC
Nominal output current: 4.17 A (120 VAC), 2.17 A (230 V AC) ±2 %
Output fuse 10 A 400 V
Connection in parallel: No
Connection in series: No

Output Data (Battery Operation)

Nominal output voltage: 120 V AC / 230 V AC
Nominal output frequency: 60 Hz / 50 Hz
Form of output voltage: Pure sine
Nominal output current: 20 A

Functionality

Battery technology: VRLA, VRLA-WTR, LI-ION
Number of interfaces: 1
Interface: USB (Modbus/RTU)
Connection method MINI-USB Type B
Number of interfaces: 2
Transmission physics: USB 2.0
Maximum cable length: 3 m
Electrical isolation: Yes
Connection method: Screw connection
Degree of protection: IP20
Operating Temperature: -25°C ... 60°C (> 50 °C Derating: 2,5 %/K)
Housing materials: Metal
UL/C-UL Recognized UL 1778

Dimensions

Width: 180 mm
Height: 130 mm
Depth: 125 mm
Mounting Type: DIN Rail

Commercial Data

Weight per Piece (excluding packing): 2724 g
Weight per Piece (including packing): 3062 g
Part Number: 1067327
GTIN: 4055626736082
Customs tariff number: 85371091
Country of Origin: DE
