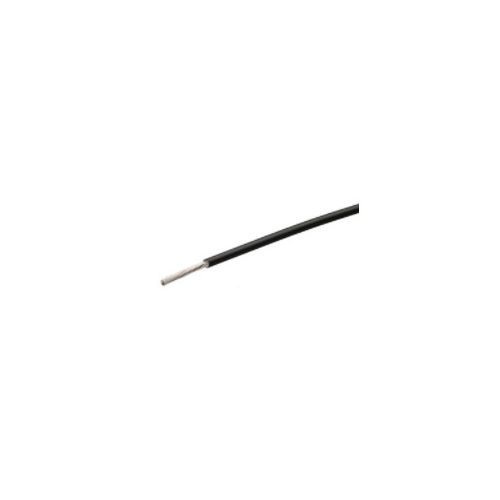

TOPFLEX V-K cable H05V-K and H07V-K

• The TOPFLEX V-K H05V-K and H07V-K cable have been specially designed for complex layout installations that require a flexible cable.
• This cable is especially suitable for domestic wiring. It can also be used for wiring equipment, distributors, cabinets, and lighting.
• Additionally, its use is recommended for installation in false ceilings. Cables up to 1 mm2 are especially suitable for signaling and control

Electrical Characteristics

• LOW VOLTAGE 300/500 V · 450/750 V

 Nominal Tension:

• H05V-K (up to 1 mm2): 300/500 V.

Reference norm

• UNE-EN 50525-2-31 / IEC 60227-3

ITC

• ITC: 9/20/26/27/29/30/31/41

Certificates

• EC
• SEC
• HAR
• AENOR
• RoHS

Construction Product Regulation

• Eca

Thermal characteristics

• Temp. maximum of the driver: 70ºC.
• Temp. Maximum short circuit: 160ºC (maximum 5 s)
• Temp. Minimum service: -40ºC (static with protection).
• Non-propagation of the flame according to UNE-EN 60332-1 and IEC 60332-1.
• Reaction to fire CPR, Eca, according to EN 50575 standard.

Mechanical characteristics

• Bending radius: 5 x outside diameter.

Chemical characteristics

• Resistance to chemical attacks: acceptable.

Presence of water

• Presence of water: AD3 aspersion.
