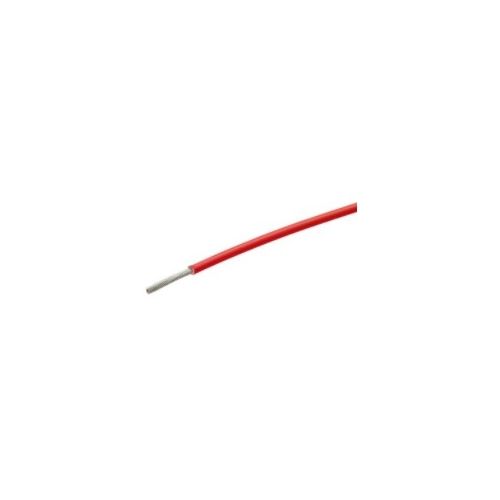

107001000300 | Equipment wire (RED) 0.75mm2
Equipment wire (RED) 0.75mm2 H050V-K, H05V-K (up to 1 mm2): 300/500 V.
| Complete Electronics Part No. | 107001000300 |
|---|---|
| Manufacturers Part No. | 107001000300 |
Description
TOPFLEX V-K cable H05V-K and H07V-K
- The TOPFLEX V-K H05V-K and H07V-K cable have been specially designed for complex layout installations that require a flexible cable.
- This cable is especially suitable for domestic wiring. It can also be used for wiring equipment, distributors, cabinets, and lighting.
- Additionally, its use is recommended for installation in false ceilings. Cables up to 1 mm2 are especially suitable for signaling and control
Electrical Characteristics
- LOW VOLTAGE 300/500 V · 450/750 V
Nominal Tension:
- H05V-K (up to 1 mm2): 300/500 V.
Reference norm
- UNE-EN 50525-2-31 / IEC 60227-3
ITC
- ITC: 9/20/26/27/29/30/31/41
Certificates
- EC
- SEC
- HAR
- AENOR
- RoHS
Construction Product Regulation
- Eca
Thermal characteristics
- Temp. maximum of the driver: 70ºC.
- Temp. Maximum short circuit: 160ºC (maximum 5 s)
- Temp. Minimum service: -40ºC (static with protection).
- Non-propagation of the flame according to UNE-EN 60332-1 and IEC 60332-1.
- Reaction to fire CPR, Eca, according to EN 50575 standard.
Mechanical characteristics
- Bending radius: 5 x outside diameter.
Chemical characteristics
- Resistance to chemical attacks: acceptable.
Presence of water
- Presence of water: AD3 aspersion.
