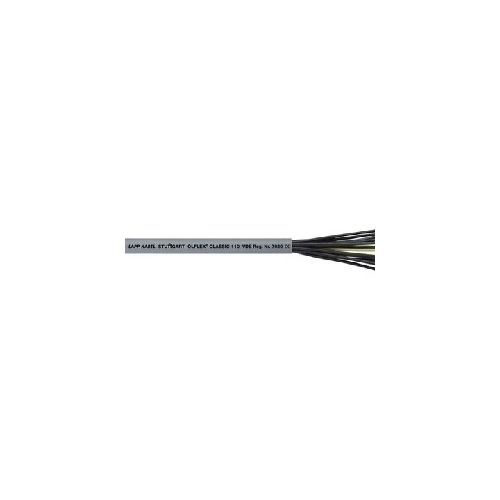

1119872 | OLFLEX CLASSIC 110 4G0,75 BK | PVC Control Cable
1119872, VDE-registered oil-resistant PVC control cable - Black, No of cores and core diameter: 4 G 0.75mm²
| Complete Electronics Part No. | 1119872 |
|---|---|
| Manufacturers Part No. | 1119872 |
| Number of Conductors: | 4 |
| Conductor Cross Section: | 0.75mm² |
Description
OLFLEX CLASSIC 110 4G0,75 BK
VDE-registered oil-resistant PVC control cable - Black
- No of cores and core diameter: 4 G 0.75mm²
- Cable Outer Diameter: 6.2mm
- with GN-YE protective conductor
- For fixed installation as well as occasional flexing
- PVC outer sheath, black (RAL 9005)
- Fine-wire strand made of bare copper wires
- Cores twisted in layers
- Nominal voltage, U0/U: 300/500 V
- Flame-retardant according IEC 60332-1-2
- Oil-resistant according to DIN EN 50290-2-22 (TM54)
- Good chemical resistance
- Occasional flexingTemperature Range: -15°C to +70°C
- In power chain temperature Range: -5°C to +70°C
- Fixed installation Temperature Range: -40°C to +80°C
