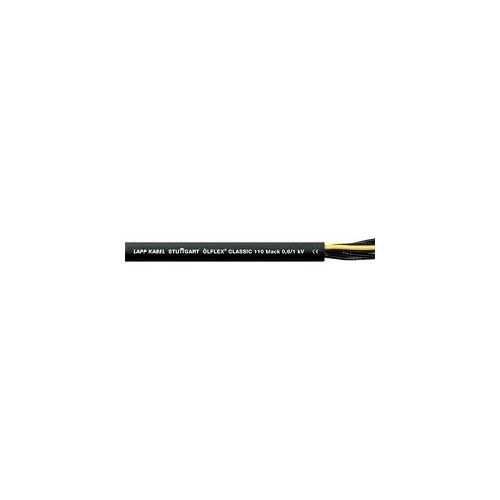

1120235 | OLFLEX CLASSIC 110 BLACK 0,6/1KV | PVC Control Cable
1120235, Power and control cable for various applications, No of cores and core diameter: 4 G 0.75 mm²
| Complete Electronics Part No. | 1120235 |
|---|---|
| Manufacturers Part No. | 1120235 |
| Number of Conductors: | 4 |
| Conductor Cross Section: | 0.75mm² |
Description
OLFLEX CLASSIC 110 BLACK 0,6/1KV 4G0,75
Power and control cable for various applications
- No of cores and core diameter: 4 G 0.75 mm²
- Nominal Voltage 600/1000 V
- with GN-YE protective conductor
- Outer Cable Diameter 9.2mm
- PVC outer sheath, black (RAL 9005)
- Flame-retardant according IEC 60332-1-2
- UV and weather-resistant according to ISO 4892-5
- Ozone-resistant according to EN 50399
- Fine-wire strand made of bare copper wires
- Core ID - Black with white numbers acc. to VDE 0293-4
- Occasional flexing temperature range: -5°C to +70°C
- Fixed installation temperature range: -40°C to +80°C
- Reel Length 100 Metres
