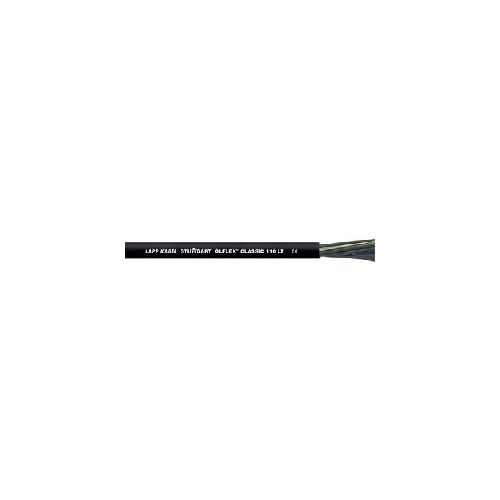

1120734 | OLFLEX CLASSIC 110 LT 4G0,75 | PVC Control Cable
1120734, Cold flexible PVC control cable, suitable for low temperatures as well as outdoor use, No of cores and core diameter: 4 G 0.75 ²
| Complete Electronics Part No. | 1120734 |
|---|---|
| Manufacturers Part No. | 1120734 |
| Number of Conductors: | 4 |
| Conductor Cross Section: | 0.75mm² |
Description
OLFLEX CLASSIC 110 LT 4G0,75
Cold flexible PVC control cable, suitable for low temperatures as well as outdoor use
- No of cores and core diameter: 4 G 0.75mm²
- Cable Outer Diameter 6.2mm
- with GN-YE protective conductor
- Inexpensive control cable for flexing outdoor use
- Outer sheath: PVC, cold-resistant, black
- Fine-wire strand made of bare copper wires
- Cores twisted in layers
- Nominal voltage, U0/U: 300/500 V
- Flame-retardant according IEC 60332-1-2
- Flexible down to -30°C
- UV and weather-resistant according to ISO 4892-2
- Ozone-resistant according to EN 50396
- Occasional flexingTemperature Range: -15°C to +70°C
- Fixed installation Temperature Range: -40°C to +80°C
