11250500 | H-D 7 SCM | Lapp Epic® H-D Insert

£1.12
Part Number 11250500 (10 in stock)

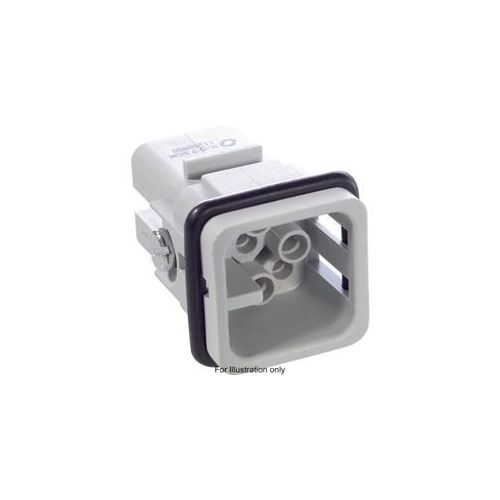

Lapp Epic® H-D Insert H-D 7 SCM
More Information
Complete Electronics Part No 11250500
Manufacturers Part No. H-D 7 SCM
Lapp Rectangular Type Insert
Lapp Rectangular Range H-D Insert
Number of poles 7+PE
Male/Female Male
Termination Crimp
Rated Voltage 24V
Rated Current 10A
10 In stock
Description

11250500 / H-D 7 SCM

Lapp Epic® H-D Insert H-D 7 SCM

  • Multi Pole Insert For Machined Contacts
  • Number of Contacts: 7+PE
  • Rated Voltage: IEC 24V ac / 60V dc - Metal Housing, 250V Thermoplatic Housing
  • Rated Current: IEC 10A
  • Termination: Crimp
  • PE Contact: Screw Termination
  • Contact Type: Male
  • Contacts: Copper Alloy, Hard Silver / Gold Plated
  • Connection Cross Section : 0.14 - 2.5mm²
  • Temperature Range: -40°C to +100°C
  • Suitable Housing: H-A 3
  • Suitable Contact: Epic® H-D 1.6 Machined
  •                    ***Contacts to be purchased separately ***
