11251000 | H-D 7 BCG | Lapp Epic® H-D Insert

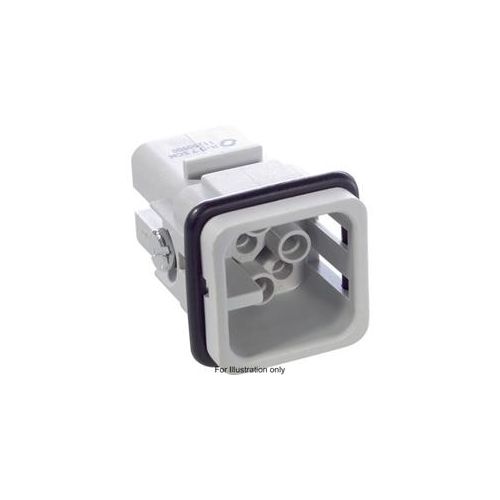

Lapp Epic® H-D Insert H-D 7 BCG
| Complete Electronics Part No. | 11251000 |
|---|---|
| Manufacturers Part No. | H-D 7 BCG |
| Lapp Rectangular Type | Insert |
| Lapp Rectangular Range | H-D Insert |
| Number of poles | 7+PE |
| Male/Female: | Female |
| Termination: | Crimp |
| Rated Voltage: | 24V |
| Rated Current: | 10 Amps |
Description
11251000 / H-D 7 BCG
Lapp Epic® H-D Insert H-D 7 BCG
- Multi Pole Insert For Stamped Contacts
- Number of Contacts: 7+PE
- Rated Voltage: IEC 24V ac / 60V dc - Metal Housing, 250V Thermoplatic Housing
- Rated Current: IEC 10A
- Termination: Crimp
- PE Contact: Screw Termination
- Contact Type: Female
- Contacts: Copper Alloy, Hard Silver / Gold Plated
- Connection Cross Section : 0.14 - 2.5mm²
- Temperature Range: -40°C to +100°C
- Suitable Housing: H-A 3
- Suitable Contact: Epic® H-D 1.6 Stamped (on Reel)
***Contacts to be purchased separately ***
