11252500 | H-D 8 SCM | Lapp Epic® H-D Insert
£1.50
Part Number 11252500 (9 in stock)

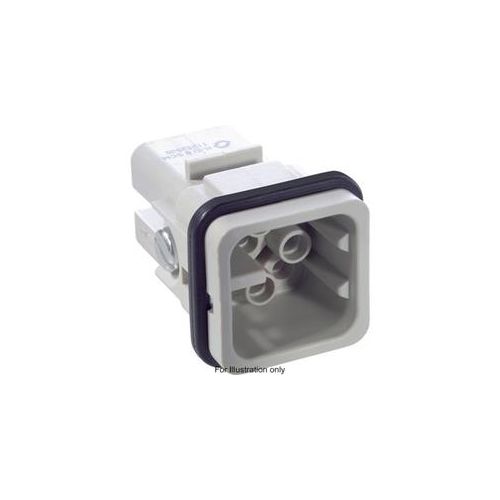

Lapp Epic® H-D Insert H-D 8 SCM
| Complete Electronics Part No. | 11252500 |
|---|---|
| Manufacturers Part No. | H-D 8 SCM |
| Lapp Rectangular Type | Insert |
| Lapp Rectangular Range | H-D Insert |
| Number of poles | 8 |
| Male/Female: | Male |
| Termination: | Crimp |
| Rated Voltage: | 24V |
| Rated Current: | 10 Amps |
Description
11252500 / H-D 8 SCM
Lapp Epic® H-D Insert H-D 8 SCM
- Multi Pole Insert For Machined Contacts
- Number of Contacts: 8
- Rated Voltage: IEC 24V ac / 60V dc - Metal Housing, 250V Thermoplatic Housing
- Rated Current: IEC 10A
- Termination: Crimp
- Contact Type:Male
- Connection Cross Section : 0.14 - 2.5mm²
- Contacts: Copper Alloy, Hard Silver / Gold Plated
- Temperature Range: -40°C to +125°C
- Suitable Housing: H-A 3
- Suitable Contact: Epic® H-D 1.6 Machined
***Contacts to be purchased separately ***
