11255000 | H-D 15 SCG | Lapp Epic® H-D Insert

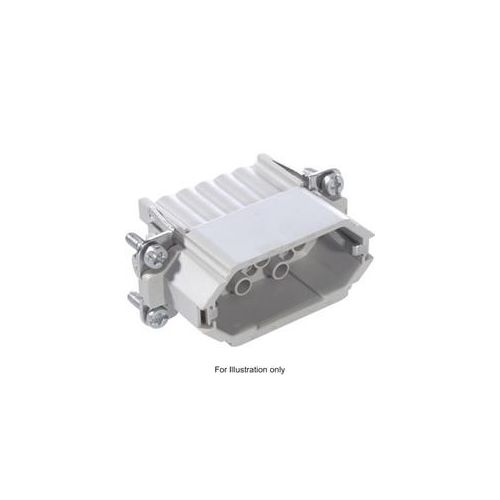

Lapp Epic® H-D Insert H-D 15 SCG
More Information
Complete Electronics Part No. 11255000
Manufacturers Part No. H-D 15 SCG
Lapp Rectangular Type Insert
Lapp Rectangular Range H-D Insert
Number of poles 15+PE
Male/Female: Male
Termination: Crimp
Rated Voltage: 250V
Rated Current: 10 Amps
Description

11255000 / H-D 15 SCG

Lapp Epic® H-D Insert H-D 15 SCG

  • Multi Pole Insert For Stamped Contacts
  • Number of Contacts: 15+PE
  • Rated Voltage: IEC 250V
  • Rated Current: IEC 10A
  • Termination: Crimp
  • Contact Type:Male
  • Connection Cross Section : 0.14 - 2.5mm²
  • Contacts: Copper Alloy, Hard Silver / Gold Plated
  • Temperature Range: -40°C to +100°C
  • Suitable Housing: H-A 10
  • Suitable Contact: Epic® H-D 1.6 Stamped (on Reel)
  •                    ***Contacts to be purchased separately ***
