11272000 | H-D 64 SCM | Lapp Epic® H-D Insert

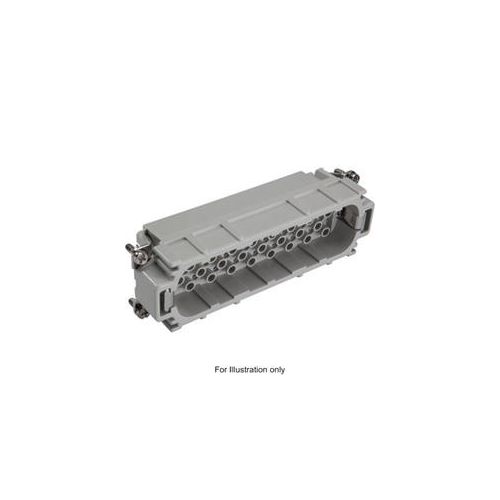

Lapp Epic® H-D Insert H-D 64 SCM
| Complete Electronics Part No. | 11272000 |
|---|---|
| Manufacturers Part No. | H-D 64 SCM |
Description
11272000 / H-D 64 SCM
Lapp Epic® H-D Insert H-D 64 SCM
- Multi Pole Insert For Machined Contacts
- Number of Contacts: 64+PE
- Rated Voltage: IEC 250V
- Rated Current: IEC 10A
- Termination: Crimp
- Contact Type:Male
- Connection Cross Section : 0.14 - 2.5mm²
- Contacts: Copper Alloy, Hard Silver / Gold Plated
- Temperature Range: -40°C to +100°C
- Suitable Housing: Ultra H-B 24, H-B 24 and QUICK & EASY Mount
- Suitable Contact: Epic® H-D 1.6 Machined
***Contacts to be purchased separately ***
