11286100 | H-DD 42 BCM | Lapp Epic® H-DD Insert

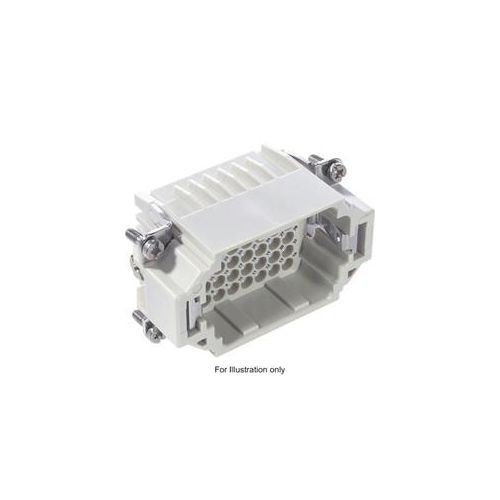

Lapp Epic® H-DD Insert H-DD 42 BCM
| Complete Electronics Part No. | 11286100 |
|---|---|
| Manufacturers Part No. | H-DD 42 BCM |
| Lapp Rectangular Type | Insert |
| Lapp Rectangular Range | H-DD Insert |
| Number of poles | 42+PE |
| Male/Female: | Female |
| Termination: | Crimp |
| Rated Voltage: | 250V |
| Rated Current: | 10 Amps |
Description
11286100 / H-DD 42 BCM
Lapp Epic® H-DD Insert H-DD 42 BCM
- Multi Pole Insert For Machined Contacts
- Number of Contacts: 42+PE
- Rated Voltage: IEC 250V
- Rated Current: IEC 10A
- Termination: Crimp
- Contact Type: Female
- Connection Cross Section : 0.14 - 2.5mm²
- Contacts: Copper Alloy, Hard Silver / Gold Plated
- Temperature Range: -40°C to +100°C
- Suitable Housing: Ultra H-B 6, H-B 6 and QUICK & EASY Mount
- Suitable Contact: Epic® H-D 1.6 Machined
***Contacts to be purchased separately ***
