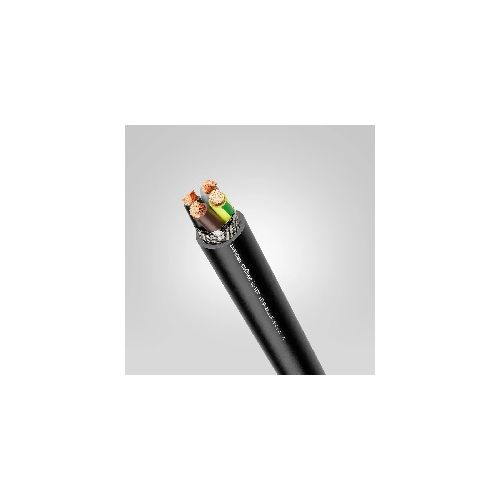

1133503 | ÖLFLEX® SERVO 2XSLCH-JB 4G6.0 | Servo Cable
Number of cores and mm² per conductor: 4 G 6.0, Outer Diameter : 15.6mm, Low-capacitance design, Flame retardant (IEC 60332-1-2), Core insulation: XLPE
| Complete Electronics Part No. | 1133503 |
|---|---|
| Manufacturers Part No. | 1133503 |
| Number of Conductors: | 4 |
Description
ÖLFLEX® SERVO 2XSLCH-JB 4G6.0
EMC-optimised motor cable
- Number of Cores and mm² per Conductor: 4 G 6.0
- G = with GN-YE protective conductor
- 4-core twisted together in one layer
- Low-capacitance
- Double screened
- Halogen-free with improved fire behaviours
- Core insulation: XLPE
- Fine-wire, bare copper conductor
- Screening: wrapping of laminated aluminium foil in combination with tinned copper braiding
- Temperature range: Flexing: -15°C to +90°C
- Temperature range: Fixed installation: -40°C to +90°C
- Flame-retardant according to IEC 60332.1.2
- flexible at low temperatures,
- UV-resistant
- Colour: Black
- Outer Diameter:15.6mm
- Part Number: 1133503
