1133505 | ÖLFLEX® SERVO 2XSLCH-JB 4G16.0 | Servo Cable

Number of cores and mm² per conductor: 4 G 16.0, Outer Diameter : 20.9mm, Low-capacitance design, Flame retardant (IEC 60332-1-2), Core insulation: XLPE

More Information
Complete Electronics Part No. 1133505
Manufacturers Part No. 1133505
Number of Conductors: 4
Description

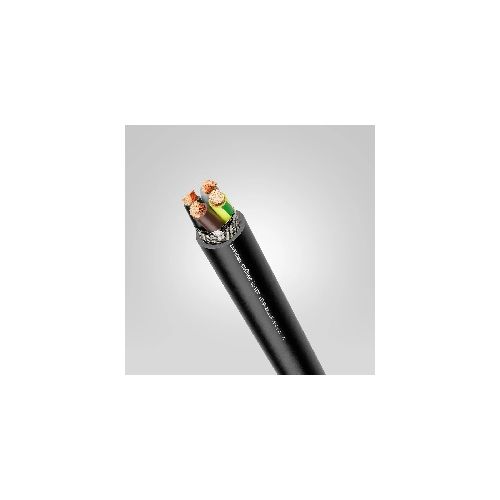

ÖLFLEX® SERVO 2XSLCH-JB 4G16.0

EMC-optimised motor cable

  • Number of Cores and mm² per Conductor: 4 G 16.0
  • G = with GN-YE protective conductor
  • 4-core twisted together in one layer
  • Low-capacitance
  • Double screened
  • Halogen-free with improved fire behaviours
  • Core insulation: XLPE
  • Fine-wire, bare copper conductor
  • Screening: wrapping of laminated aluminium foil in combination with tinned copper braiding
  • Temperature range: Flexing: -15°C to +90°C
  • Temperature range: Fixed installation: -40°C to +90°C
  • Flame-retardant according to IEC 60332.1.2
  • flexible at low temperatures,
  •  UV-resistant
  • Colour: Black
  • Outer Diameter:20.9mm
  • Part Number: 1133505
