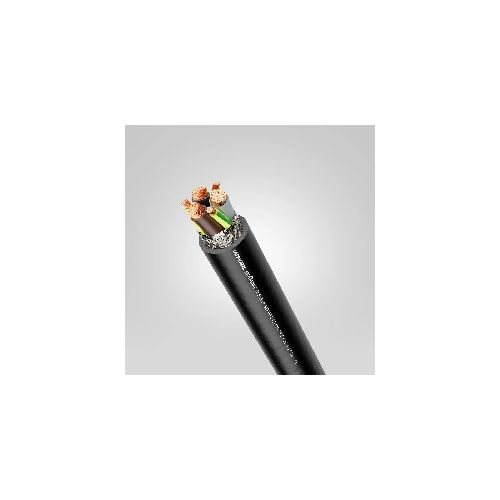

1133516| ÖLFLEX® SERVO 2XSLCH-JB | 3+3 4/0.75G| Servo Cable
Number of cores and mm² per conductor: 3 X 4 + 3 X G 0,75, Outer Diameter: 13.5mm, Low-capacitance design, Flame retardant (IEC 60332-1-2)
| Complete Electronics Part No. | 1133516 |
|---|---|
| Manufacturers Part No. | 1133516 |
| Number of Conductors: | 3 + 3 |
Description
ÖLFLEX® SERVO 2XSLCH-JB 3 X 4 + 3 X G 0,75
EMC-optimised motor cable
- Number of Cores and mm² per Conductor: 3 X 4 + 3 X G 0,75
- G = with GN-YE protective conductor
- 3 cores + 3 cores
- 3+3 symmetry reduces common-mode interference effects
- Protective conductor of 3+3 version is gusset-filling divided between power cores
- Low-capacitance
- Double screened
- Halogen-free with improved fire behaviours
- Core insulation: XLPE
- Fine-wire, bare copper conductor
- Screening: wrapping of laminated aluminium foil in combination with tinned copper braiding
- Temperature range: Flexing: -15°C to +90°C
- Temperature range: Fixed installation: -40°C to +90°C
- Flame-retardant according to IEC 60332.1.2
- flexible at low temperatures,
- UV-resistant
- Colour: Black
- Outer Diameter:13.5mm
- Part Number: 1133516
