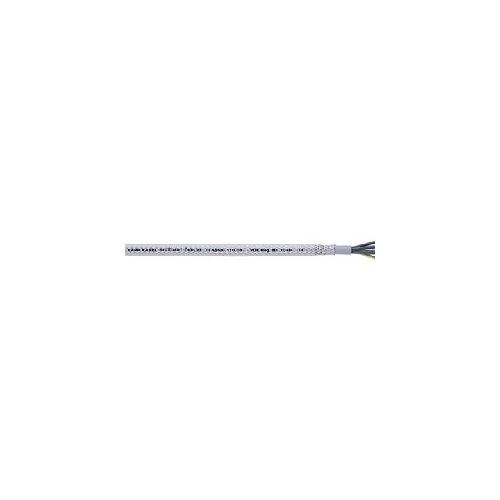

1135104 | OLFLEX CLASSIC 110 CY 4G0,75 | PVC Control Cable
1135104, Screened PVC control cable with transparent outer sheath, No of cores and core diameter: 4 G 0.75mm²
| Complete Electronics Part No. | 1135104 |
|---|---|
| Manufacturers Part No. | 1135104 |
| Number of Conductors: | 4 |
| Conductor Cross Section: | 0.75mm² |
Description
OLFLEX CLASSIC 110 CY 4G0,75
Screened PVC control cable with transparent outer sheath
- No of cores and core diameter: 4 G 0.75mm²
- Outer Cable Diameter 8.4mm
- with GN-YE protective conductor
- Suitable for use in EMC-sensitive environments
- PVC outer sheath, transparent
- PVC inner sheath, grey
- Nominal voltage, U0/U: 300/500 V
- Flame-retardant according IEC 60332-1-2
- Good chemical resistance
- High degree of screening
- Fine-wire strand made of bare copper wires
- Cores twisted in layers
- Tinned Copper Braiding
- Reel Length 100 Metres
