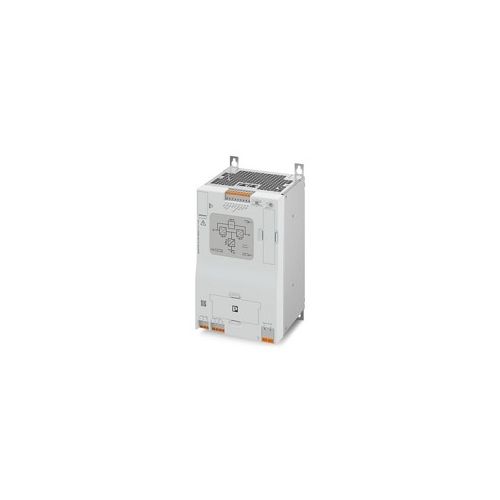

1136804 | QUINT-HP-UPS/120AC/1.5KVA/PT | UPS
QUINT AC-USV, IQ Technology, Wall mounting, input: 100 V / 110 V / 120 V / 130 VAC, output: 120 V AC / 1500 VA
| Complete Electronics Part No. | 1136804 |
|---|---|
| Manufacturers Part No. | 1136804 |
| Phoenix Ethernet Series: | Quint UPS |
| Input Voltage: | AC 120V |
| Operating Voltage: | AC 120V |
| Output Type: | 1500 VA |
| Mounting: | Wall |
Description
QUINT-HP-UPS/120AC/1.5KVA/PT
Uninterruptible Power Supply
Input Data
Input voltage: 100 V / 110 V / 120 / 130 V AC
Input voltage range: 100 V AC ... 130 V AC
Frequency range 47.5 Hz ... 52.5 Hz
Bypass fuse 30 A T 250 V
Permissible backup fuse 32 A (Listed breaker)
Current consumption: Dependant on input voltage (see datasheet for details)
Output Data (Mains Operation)
Output voltage:100 V AC....130 V AC
Form of output voltage: Pure sine
Nominal output current:-
15 A (100 V AC)
13.6 A (110 V AC
12.5 A (120 V AC)
11.5 A (130 V AC)
Nominal output frequency: 50 Hz....60 Hz
Output Data (Battery Operation)
Maximum no-load power dissipation: 25 W
Power loss nominal load max: 140 W (100% load, battery charged)
Nominal output frequency: 50Hz...60Hz
Functionality
Connection in parallel: yes (max. 3)
Connection in series: no
Switch-over time: 0 ms
Overload capability Mains operation 120 % ... 150 % (20 s / 5 s, then switch to bypass operation)
Overload capability Battery operation 120 % ... 150 % (20 s / 5 s, then shutdown)
Overload capability Bypass mode 120 % ... 150 % (for a sustained period / 20 s, then shutdown)
Connection method: Push-in connection
Interface: Battery module communication interface
Number of interfaces 1
Connection method RJ45
Interface: Parallel operation communication interface
Number of interfaces: 2
Connection method: RJ45
Degree of protection: IP20
Operating Temperature: -25°C ... 60°C (> 50 °C Derating: 2,5 %/K)
UL/C-UL Recognized UL 1778
Dimensions
Width: 150 mm
Height: 240 mm
Depth: 143 mm
Mounting Type: Wall
Commercial data
Weight per Piece (excluding packing): 4400 g
Weight per Piece (including packing): 4900 g
Part Number: 1136804
GTIN: 4063151072926
Customs tariff number: 85371091
Country of Origin: DE
