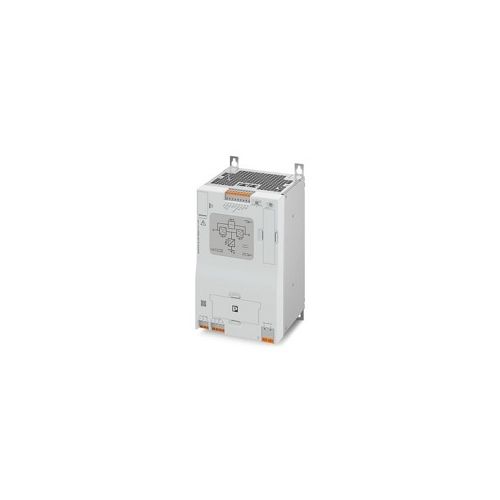

1136811 | QUINT-HP-UPS/230AC/1.5KVA/PT | UPS
QUINT AC-USV, IQ Technology, Wall mounting, input: 230 V AC, output: 230 V AC / 1500 VA, Frequency range 47.5 Hz ... 52.5 Hz
| Complete Electronics Part No. | 1136811 |
|---|---|
| Manufacturers Part No. | 1136811 |
| Phoenix Ethernet Series: | Quint UPS |
| Input Voltage: | AC 230V |
| Operating Voltage: | AC 230V |
| Output Type: | 1500 VA |
| Mounting: | Wall |
Description
QUINT-HP-UPS/230AC/1.5KVA/PT
Uninterruptible Power Supply
Input Data
Input voltage: 200 V / 210 V / 220 / 230 / 240 V AC
Input voltage range: 200 V AC ... 240 V AC
Frequency range 47.5 Hz ... 52.5 Hz
Bypass fuse 16 A T 250 V
Permissible backup fuse: B16 B25 C16 C25
Current consumption: Dependant on input voltage (see datasheet for details)
Output Data (Mains Operation)
Output voltage:200 V AC....240 V AC
Form of output voltage: Pure sine
Nominal output current:-
7.5 A (200 V AC)
7.1 A (210 V AC
6.8 A(220 V AC)
6.5 A (230 V AC)
6.3 A (240 V AC)
Nominal output frequency: 50 Hz....60 Hz
Output Data (Battery Operation)
Maximum no-load power dissipation: 32 W
Power loss nominal load max: 130 W (100% load, battery charged)
Nominal output frequency: 50Hz...60Hz
Functionality
Connection in parallel: yes, max. 3
Connection in series: no
IQ-Technology: Yes
Permissible backup fuse: 40 A
Connection method: Push-in connection
Temperature sensor: Yes
Interface: Battery module communication interface
Number of interfaces 1
Connection method RJ45
Interface: Parallel operation communication interface
Number of interfaces: 2
Connection method: RJ45
Degree of protection: IP20
Operating Temperature: -25°C ... 60°C (> 50 °C Derating: 2,5 %/K)
UL/C-UL Listed: Approval ID: E342453-20230513
Dimensions
Width: 150 mm
Height: 240 mm
Depth: 143 mm
Mounting Type: Wall
Commercial data
Weight per Piece (excluding packing): 4300 g
Weight per Piece (including packing): 4800 g
Part Number: 1136811
GTIN: 4063151073435
Customs tariff number: 85371091
Country of Origin: DE
