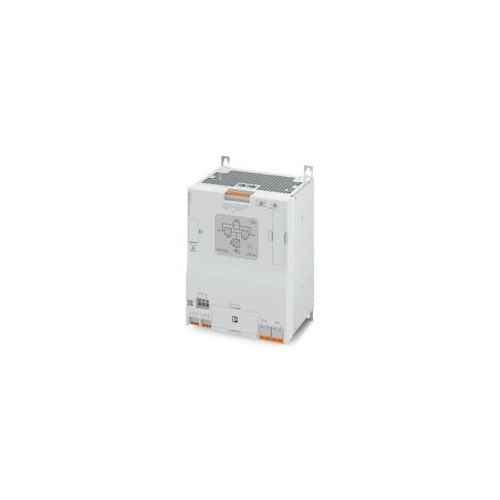

1136813 | QUINT-HP-UPS/120AC/2.5KVA/PT | UPS
QUINT AC-USV, IQ Technology, Wall mounting, input: 120 V AC, output: 120 V AC / 2500 VA. At least 2x 1133819 are required for operation.
| Complete Electronics Part No. | 1136813 |
|---|---|
| Manufacturers Part No. | 1136813 |
| Phoenix Ethernet Series: | Quint UPS |
| Input Voltage: | AC 120V |
| Operating Voltage: | AC 120V |
| Output Type: | 2500 VA |
| Mounting: | Wall |
Description
QUINT-HP-UPS/120AC/2.5KVA/PT
Uninterruptible Power Supply
Input Data
Input voltage: 100 V / 110 V / 120 / 130 V AC
Input voltage range: 100 V AC ... 130 V AC
Frequency range 47.5 Hz ... 52.5 Hz
Bypass fuse 40 A T 250 V
Permissible backup fuse 40 A (Listed breaker)
Current consumption: Dependant on input voltage (see datasheet for details)
Output Data (Mains Operation)
Output voltage:100 V AC....130 V AC
Form of output voltage: Pure sine
Nominal output current:-
20 A (100 V AC)
18.2A (110 V AC
20.8 (120 V AC)
19.2A (130 V AC)
Nominal output frequency: 50 Hz....60 Hz
Output Data (Battery Operation)
Maximum no-load power dissipation: 9 W
Power loss nominal load max: 250 W (100% load, battery charged)
Nominal output frequency: 50Hz...60Hz
Functionality
Connection in parallel: yes, max. 3 (per battery string)
Connection in series: No
IQ-Technology: Yes
Permissible backup fuse: 40 A
Connection method: Push-in connection
Interface: Battery module communication interface
Number of interfaces 1
Connection method RJ45
Interface: Parallel operation communication interface
Number of interfaces: 2
Connection method: RJ45
Degree of protection: IP20
Operating Temperature: -25°C ... 60°C (> 50 °C Derating: 2,5 %/K)
UL/C-UL Recognized UL 1778
Dimensions
Width: 188 mm
Height: 240 mm
Depth: 143 mm
Mounting Type: Wall
Commercial data
Weight per Piece (excluding packing): 5700 g
Weight per Piece (including packing): 6200 g
Part Number: 1136813
GTIN: 4063151073237
Customs tariff number: 85371091
Country of Origin: DE
