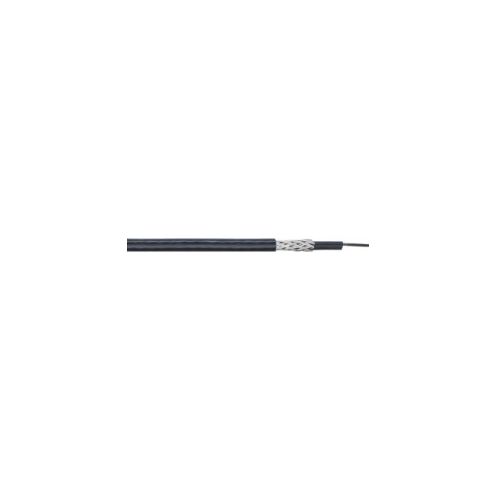

1161007 | K FEP-C-FEP NICR/NI 2X0,22 IEC | Paired Cables
FEP insulated thermocouple cable type K, Single Paired Version, Thermocouple: NiCr/Ni, Number of Cores & Diameter: 2 x 0.22mm², tinned copper screening
| Complete Electronics Part No. | 1161007 |
|---|---|
| Manufacturers Part No. | 1161007 |
| Number of Conductors: | 2 |
| Conductor Cross Section: | 0.22mm² |
| Special Application Series: | Single Paired Temperature Measure |
| Shielding: | Shielded / Screened |
| Cable Length: | 100 Metres |
Description
Limiting deviation: ± 2,5°C (acc. to IEC 60584-1)
Thermocouple tolerances: - 40°C up to +1200°C (acc. to IEC 60584-3)
Test voltage: 500 V
No protective conductor
Temperature range, Fixed Install: -100°C to 205°C
Temperature, occasionally flexing: -100°C to 205°C
Oil-resistant - Yes
Chemical resistant - Yes
UV-resistant - No
Halogen Free - No
Flame retardant - Yes acc. to IEC 60332-1 - 2
PWIS-free - No
Cable Length: 100 metres
Lapp Part Number:1161007
FEP insulated thermocouple cable type K which transmits the thermoelectric voltage of NiCr/Ni thermocouples
For flexible use and fixed installation in dry and damp rooms.
May only be installed outdoors in observation of the max. permitted temperature range
FEP insulated thermocouple cable type K
Single Paired insulated cables - not armoured
Single Paired Version
Thermocouple: NiCr/Ni
Product Make Up: IEC K
Cable Design: FEP-C-FEP
Number of Cores & Diameter: 2 x 0.22mm²
Cable Outer Diameter: 3.0mm
For use in temperature measurement
Conductor design: 0.5mm solid conductor
K alloys, according IEC 60584-1
Positive conductor: NiCr (Nickel chromium), Green
Negative conductor: Ni (Nickel), White
Core insulation base material: Fluoroethylene propylene (FEP)
Outer braid colour: Green
K alloys, according IEC 60584-1
Positive conductor: NiCr (Nickel chromium), Green
Negative conductor: Ni (Nickel), White
Core insulation base material: Fluoroethylene propylene (FEP)
Outer braid colour: Green
Limiting deviation: ± 2,5°C (acc. to IEC 60584-1)
Thermocouple tolerances: - 40°C up to +1200°C (acc. to IEC 60584-3)
Test voltage: 500 V
No protective conductor
Temperature range, Fixed Install: -100°C to 205°C
Temperature, occasionally flexing: -100°C to 205°C
Oil-resistant - Yes
Chemical resistant - Yes
UV-resistant - No
Halogen Free - No
Flame retardant - Yes acc. to IEC 60332-1 - 2
PWIS-free - No
Cable Length: 100 metres
Lapp Part Number:1161007
FEP insulated thermocouple cable type K which transmits the thermoelectric voltage of NiCr/Ni thermocouples
For flexible use and fixed installation in dry and damp rooms.
May only be installed outdoors in observation of the max. permitted temperature range
