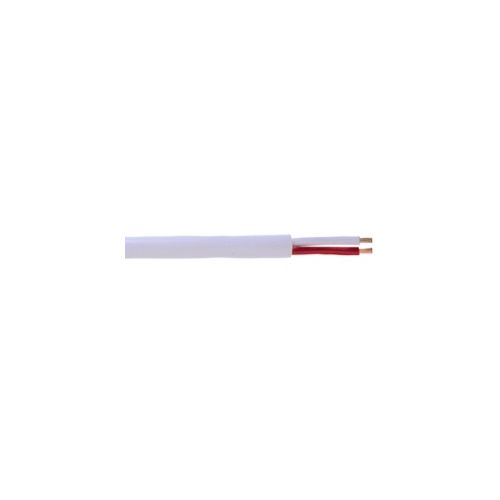

1161008 | K FEP-FEP NICR/NI 2X0,5 IEC OVAL | Paired Cables
FEP insulated thermocouple cable type K, Single Pair, Thermocouple: NiCr/Ni, Make Up: IEC K, Cable Design: FEP-FEP Oval, No. of Cores & Diameter: 2 x 0.5mm²
| Complete Electronics Part No. | 1161008 |
|---|---|
| Manufacturers Part No. | 1161008 |
| Number of Conductors: | 2 |
| Conductor Cross Section: | 0.5mm² |
| Special Application Series: | Single Paired Temperature Measure |
| Shielding: | Not Shielded |
| Cable Length: | 100 Metres |
Description
Temperature range, Fixed Install: -100°C to 205°C
Temperature, occasionally flexing: -100°C to 205°C
Oil-resistant - Yes
Chemical resistant - Yes
UV-resistant - No
Halogen Free - No
Flame retardant - Yes acc. to IEC 60332-1 - 2
PWIS-free - No
Cable Length: 100 metres
Lapp Part Number: 1161008
FEP insulated thermocouple cable type K
Single Paired insulated cables - not armoured
Single Paired Version
Thermocouple: NiCr/Ni
Product Make Up: IEC K
Cable Design: FEP-FEP Oval
Number of Cores & Diameter: 2 x 0.5mm²
Outer Dimensions W x H: 2.4 x 1.5mm
For use in temperature measurement
Conductor design: 0.5mm solid conductor
K alloys, according IEC 60584-1
Positive conductor: NiCr (Nickel chromium), Green
Negative conductor: Ni (Nickel), White
Core insulation base material: Fluoroethylene propylene (FEP)
Outer braid colour: Green
K alloys, according IEC 60584-1
Positive conductor: NiCr (Nickel chromium), Green
Negative conductor: Ni (Nickel), White
Core insulation base material: Fluoroethylene propylene (FEP)
Outer braid colour: Green
Limiting deviation: ± 2,5°C (acc. to IEC 60584-1)
Thermocouple tolerances: - 40°C up to +1200°C (acc. to IEC 60584-3)
Test voltage: 500 V
No protective conductor
Thermocouple tolerances: - 40°C up to +1200°C (acc. to IEC 60584-3)
Test voltage: 500 V
No protective conductor
Temperature range, Fixed Install: -100°C to 205°C
Temperature, occasionally flexing: -100°C to 205°C
Oil-resistant - Yes
Chemical resistant - Yes
UV-resistant - No
Halogen Free - No
Flame retardant - Yes acc. to IEC 60332-1 - 2
PWIS-free - No
Cable Length: 100 metres
Lapp Part Number: 1161008
FEP insulated thermocouple cable type K which transmits the thermoelectric voltage of NiCr/Ni thermocouples
For flexible use and fixed installation in dry and damp rooms.
May only be installed outdoors in observation of the max. permitted temperature range
For flexible use and fixed installation in dry and damp rooms.
May only be installed outdoors in observation of the max. permitted temperature range
