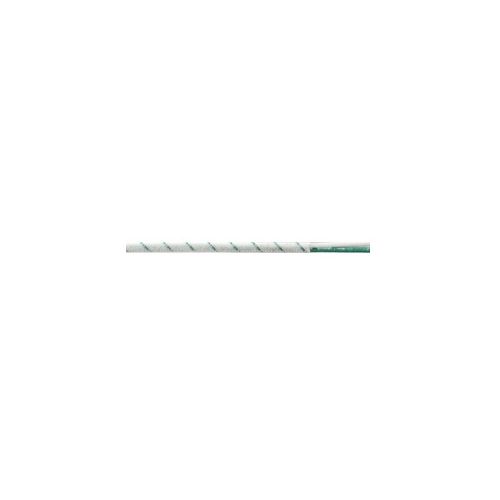

1161009 | K GL-GL NICR/NI 2X0,5 IEC OVAL | Paired Cables
Glass Fibre (GL) Paired Extension and Compensating Cable, Single Paired Version, Thermocouple: NiCr/Ni, Number of Cores & Diameter: 2 x 0.5mm²
| Complete Electronics Part No. | 1161009 |
|---|---|
| Manufacturers Part No. | 1161009 |
| Number of Conductors: | 2 |
| Conductor Cross Section: | 0.5mm² |
| Special Application Series: | Single Paired Temperature Measure |
| Shielding: | Not Shielded |
| Cable Length: | 100 Metres |
Description
Conductor design: 0.5mm solid conductor
K alloys, according IEC 60584-1
Positive conductor: NiCr (Nickel chromium), Green
Negative conductor: Ni (Nickel), White
Core insulation: E glass
Outer Braid: E glass
Outer braid colour: Green
Temperature range, Fixed Install: -50°C to 400°C
Temperature, occasionally flexing: -25°C to 400°C
Oil-resistant - No
Chemical resistant - No
UV-resistant - No
Halogen Free - Yes
Flame retardant - Yes acc. to IEC 60332-1 - 2
PWIS-free - No
Cable Length: 100 metres
Lapp Part Number: 1161009
E-glass wrapped thermocouple cable type K
Single Paired insulated cables - not armoured
Single Paired Version
Thermocouple: NiCr/Ni
Product Make Up: IEC K
Cable Design: EGL-EGL Oval
Number of Cores & Diameter: 2 x 0.5mm²
Outer Dimensions W x H: 2.3 x 1.3mm
For use in temperature measurement
Conductor design: 0.5mm solid conductor
K alloys, according IEC 60584-1
Positive conductor: NiCr (Nickel chromium), Green
Negative conductor: Ni (Nickel), White
Core insulation: E glass
Outer Braid: E glass
Outer braid colour: Green
Limiting deviation: ± 2,5°C (acc. to IEC 60584-1)
Thermocouple tolerances: - 40°C up to +1200°C (acc. to IEC 60584-3)
Test voltage: 500 V
No protective conductor
Thermocouple tolerances: - 40°C up to +1200°C (acc. to IEC 60584-3)
Test voltage: 500 V
No protective conductor
Temperature range, Fixed Install: -50°C to 400°C
Temperature, occasionally flexing: -25°C to 400°C
Oil-resistant - No
Chemical resistant - No
UV-resistant - No
Halogen Free - Yes
Flame retardant - Yes acc. to IEC 60332-1 - 2
PWIS-free - No
Cable Length: 100 metres
Lapp Part Number: 1161009
An E-glass wrapped thermocouple cable type K which transmits the thermoelectric voltage of NiCr/Ni thermocouples
Only to be installed outdoors with UV and humidity protection
For fixed and occasional flexing installations
Only to be installed outdoors with UV and humidity protection
For fixed and occasional flexing installations
