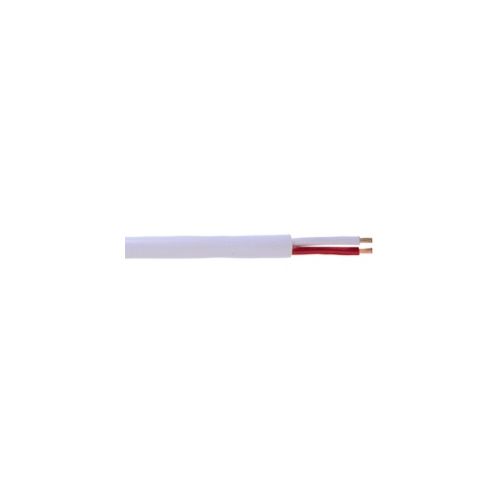

1161011 | KCA FEP-SIL NICR/NI 2X0,22 IEC | Paired Cables
FEP/Silicone rubber insulated compensating cable type KCA, transmits the thermoelectric voltage of NiCr/Ni thermocouples, No. of Cores & Diam.: 2 x 0.22mm²
| Complete Electronics Part No. | 1161011 |
|---|---|
| Manufacturers Part No. | 1161011 |
| Number of Conductors: | 2 |
| Conductor Cross Section: | 0.22mm² |
| Special Application Series: | Single Paired Temperature Measure |
| Cable Length: | 100 Metres |
Description
Limiting deviation class2: ± 100 µV (± 2,5°C) (acc. to IEC 60584-3)
Measuring point temperature +900°C (acc. to IEC 60584-3)
Test voltage: 500 V
Temperature range, Fixed Install: -50°C to 180°C
Temperature, occasionally flexing: -25°C to 180°C
Oil-resistant - No
Chemical resistant - Yes
UV-resistant - No
Halogen Free - No
Flame retardant - Yes acc. to IEC 60332-1 - 2
PWIS-free - No
Cable Length: 100 metres
Lapp Part Number:1161011
FEP/Silicone rubber insulated compensating cable type KCA which transmits the thermoelectric voltage of NiCr/Ni thermocouples.
For flexible use and fixed installation in dry and damp rooms.
May only be installed outdoors with UV protection and observation of the max. permitted temperature range
FEP/Silicone insulated thermocouple cable type KCA
Single Paired insulated cables - not armoured
Single Paired Version
Thermocouple: NiCr/Ni
Product Make Up: IEC KCA
Cable Design: FEP-SIL
Number of Cores & Diameter: 2 x 0.22mm²
Cable Outer Diameter: 3.8mm
For use in temperature measurement
Conductor design: 0.5mm solid conductor
K alloys, according IEC 60584
Positive conductor: Fe (iron), Green
Negative conductor: CuNi (cupronickel), White
Core insulation base material: Fluoroethylene propylene (FEP)
Outer sheath material: Silicone
Outer braid colour: Green
Cores twisted together
K alloys, according IEC 60584
Positive conductor: Fe (iron), Green
Negative conductor: CuNi (cupronickel), White
Core insulation base material: Fluoroethylene propylene (FEP)
Outer sheath material: Silicone
Outer braid colour: Green
Cores twisted together
Limiting deviation class2: ± 100 µV (± 2,5°C) (acc. to IEC 60584-3)
Measuring point temperature +900°C (acc. to IEC 60584-3)
Test voltage: 500 V
Temperature range, Fixed Install: -50°C to 180°C
Temperature, occasionally flexing: -25°C to 180°C
Oil-resistant - No
Chemical resistant - Yes
UV-resistant - No
Halogen Free - No
Flame retardant - Yes acc. to IEC 60332-1 - 2
PWIS-free - No
Cable Length: 100 metres
Lapp Part Number:1161011
FEP/Silicone rubber insulated compensating cable type KCA which transmits the thermoelectric voltage of NiCr/Ni thermocouples.
For flexible use and fixed installation in dry and damp rooms.
May only be installed outdoors with UV protection and observation of the max. permitted temperature range
