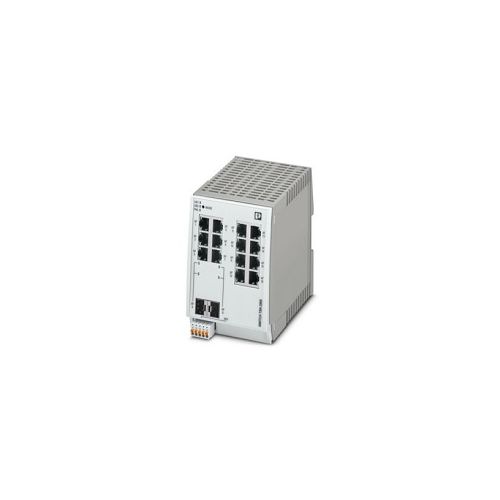

1232302 | FL SWITCH TSN 2314-2SFP | Ethernet Switch

Managed TSN Switch 2000, 14 RJ45 ports 10/100/1000 Mbps, 2 SFP ports 100/1000 Mbps, PROFINET Conformance-Class B, Store-and-forward switch

More Information
Complete Electronics Part No. 1232302
Manufacturers Part No. 1232302
Phoenix Ethernet Series: Managed Switch TSN 2000
Managed / Unmanaged: Managed
Total 100/1000 (FX) Ports: 2
Total 10/100/1000 (RJ45) Ports: 14
Total Ethernet Ports: 16
FX (Optical) Connector Type: SFP
IP Rating: IP20
Description

FL SWITCH TSN 2314-2SFP

14 x Twisted Pair RJ45 Ports, 2 x SFP Ports

Ethernet (RJ45 x 14)

Transmission speed: 10/100/1000 Mbps
Transmission length:100 m (per segment)
Signal LED's: Data receive, link status

Ethernet (SFP x 2)

Transmission speed: 100/1000 Mbps (full duplex)
Transmission physics: Depending on the SFP module
Transmission length: up to 80 km (depending on the SFP module used)
Signal LEDs: Data receive, link status

Switch Functions

Auto Negotiation and Autocrossing
Complies with IEEE 802.3, store and forward switching
Jumbo frames (max. 9,600 bytes)
Transmission of MMS and GOOSE (IEC 61850-8-1)
Transmission of Modbus/TCP
SNTP (Simple Network Time Protocol)
DIN Rail Mount
PROFINET device
Supply voltage: 24V DC
Supply voltage range: 12 V DC ... 57 V DC
Power supply connection Via COMBICON, max. conductor cross section 1.5 mm²
Typical current consumption: 810 mA (at 24 V DC & 25°C ambient)
Degree of protection: IP20
Operating Temperature: -40°C ... 60°C

Dimensions

Width: 85mm
Height: 130mm
Depth: 115mm
Housing Material: Polycarbonate fibre reinforced
Mounting Type: DIN Rail

Commercial data

Weight per Piece (excluding packing): 445 g
Weight per Piece (including packing): 680.6 g
Part Number 1232302
GTIN: 4063151333188
Country of Origin: DE
