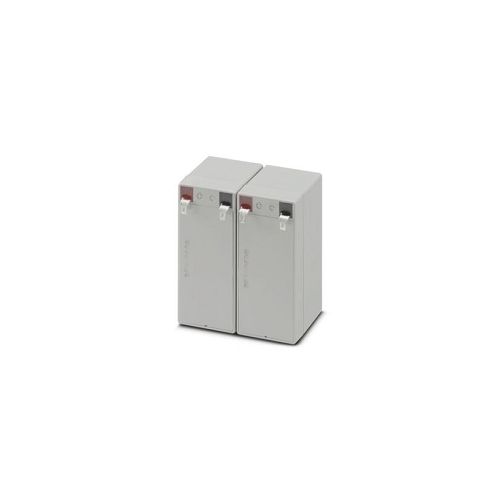

1283114 | UPS-BAT-KIT/PB/2X12V/1.2AH | UPS Battery Module
Replacement battery, VRLA-AGM, 2x12 V DC, 1.2 Ah. Only for 1274520 UPS-BAT/PB/24DC / 1. 2AH and 2320254 QUINT-UPS/24DC/24DC/5/1.3AH from V/C 05
| Complete Electronics Part No. | 1283114 |
|---|---|
| Manufacturers Part No. | 1283114 |
| Phoenix Ethernet Series: | Quint UPS Battery Module |
| Input Voltage | 2 x 12 DC |
| Operating Voltage: | DC 24 V |
| Output Type | 1.2 Ah |
Description
UPS-BAT-KIT/PB/2X12V/1.2AH
UPS Battery Module
Input Data
Input voltage: 2x12 V DC,
Nominal capacity: 1.2 Ah
Output Data
Voltage 24 V DC
Nominal capacity: 1.2 Ah
Functionality
Battery type BB Battery, BP1.2-12FR
Battery technology: VRLA-AGM
IQ-Technology: No
Suited for EX-applications: No
Degree of protection: IP20
Operating Temperature: -20°C ... 50°C
Approvals: GOST-R Approval ID: ROSS DE.BL08.D00191, EAC
Suitable for: 2320254 QUINT-UPS/24DC/24DC/5/1.3AH from V/C 05
Dimensions
Width: 47 mm
Height: 117 mm
Depth: 99 mm
Commercial Data
Weight per Piece (excluding packing): 1264 g
Weight per Piece (including packing): 1264 g
Part Number: 1283114
GTIN: 4063151482398
Customs tariff number: 85072080
Country of Origin: CN
