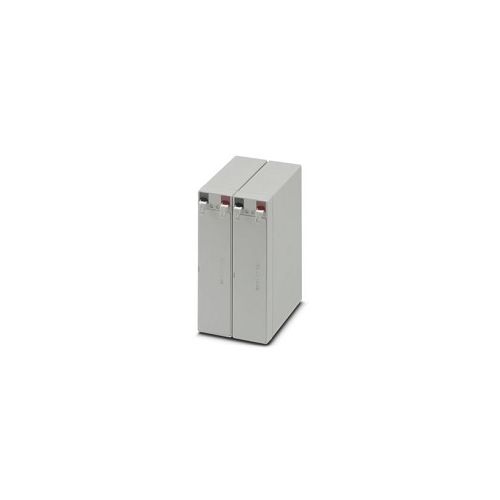

1283116 | UPS-BAT-KIT/PB/2X12V/4AH | UPS Battery Module

Replacement battery, VRLA-AGM, 2x12 V DC, 4 Ah for 2320267 QUINT-UPS/24DC/24DC/10/3.4AH, 2905908 TRIO-UPS-2G/1AC/1AC/120V/750VA

More Information
Complete Electronics Part No. 1283116
Manufacturers Part No. 1283116
Phoenix Ethernet Series: Quint UPS Battery Module
Input Voltage: 2 x 12 DC
Operating Voltage: DC 24 V
Output Type: 4 Ah
Description

UPS-BAT-KIT/PB/2X12V/4AH

UPS Battery Module

Input Data

Input voltage: 2x12 V DC,
Nominal capacity: 4 Ah

Output Data

24 V DC, 4 Ah

Functionality

Battery type BB Battery, HR4.2-12FR
Battery technology: VRLA-AGM
IQ-Technology: No
Degree of protection: IP20
Operating Temperature: -20°C ... 40°C
Approvals: GOST-R  Approval ID: ROSS DE.BL08.D00191, EAC
Suitable for: 2320267 QUINT-UPS/24DC/24DC/10/3.4AH
Suitable for: 2905908 TRIO-UPS-2G/1AC/1AC/120V/750VA
Suitable for: 2905909 TRIO-UPS-2G/1AC/1AC/230V/750VA

Dimensions

Width: 82 mm
Height: 142 mm
Depth: 102 mm

Commercial Data

Weight per Piece (excluding packing): 2950 g
Weight per Piece (including packing): 2950g
Part Number: 1283116
GTIN: 4063151487676
Customs tariff number: 85072080
Country of Origin: CN
