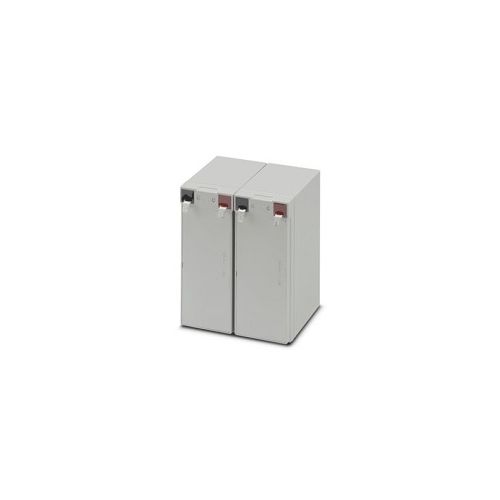

1283119 | UPS-BAT-KIT/PB/2X12V/7AH | UPS Battery Module
Replacement battery, VRLA-AGM, 2x12 V DC, 7 Ah, BB Battery - BP7-12FR, Not suited for EX-applications
| Complete Electronics Part No. | 1283119 |
|---|---|
| Manufacturers Part No. | 1283119 |
| Phoenix Ethernet Series: | Quint UPS Battery Module |
| Input Voltage: | 2 x 12 DC |
| Operating Voltage: | DC 24 V |
| Output Type: | 7 Ah |
Description
UPS-BAT-KIT/PB/2X12V/7AH
Uninterruptible Power Supply
Input Data
Input voltage: 2x12 V DC,
Nominal capacity: 7 Ah
Output Data
Voltage 24 V DC
Nominal capacity: 7 Ah
Functionality
Battery type BB Battery, BP1.2-12FR
Battery technology: VRLA-AGM
IQ-Technology: No
Suited for EX-applications: No
Degree of protection: IP20
Operating Temperature: -20°C ... 40°C
Approvals: GOST-R Approval ID: ROSS DE.BL08.D00191, EAC
Suitable for: 2320254 QUINT-UPS/24DC/24DC/5/1.3AH from V/C 05
Dimensions
Width: 134 mm
Height: 153 mm
Depth: 100 mm
Commercial Data
Weight per Piece (excluding packing): 5253 g
Weight per Piece (including packing): 5253 g
Part Number: 1283119
GTIN: 4063151486891
Customs tariff number: 85072080
Country of Origin: CN
