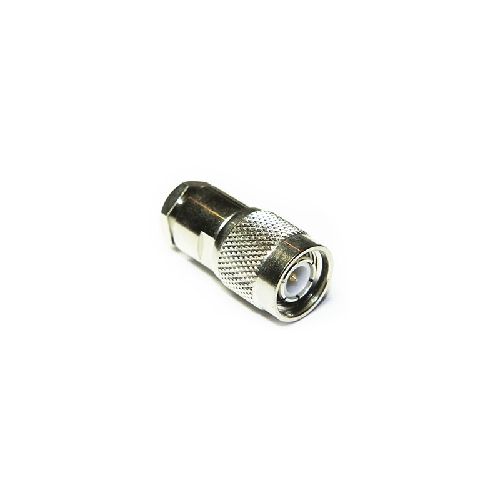

13-001-A3-AH | 13001A3AH | TNC Solder / Top Hat Clamp Plug
TNC 50 ohm straight clamp plug with gold plated soldered centre contact. Suitable for RG58 or similar cables in group AH.
| Complete Electronics Part No. | 13001A3AH |
|---|---|
| Manufacturers Part No. | 13-001-A3-AH |
| Type | Straight |
| Impedance | 50 Ohm |
| Working Frequency | Up To 3 GHz |
Description
Electrical Specification
- Impedance: 50 Ohm
- Frequency Range: Up to 3GHz
- Dielectric Withstand Voltage 1500 Veff
- Insulation Resistance 5000 M-Ohm
Mechanical Specification
- Design Standard: IEC 60169-17
- RoHS3 Compliant
- Centre Contact Termination: Solder
- Outer Contact Termination: Clamp
- Mating Cycles: 250
- Contact Retention: 10N min
- Cable Retention: 100N min
- Weight: 18.68g
- Mating Force: 13.6N max
- Un-Coupling Force: 13.6N max
- Operating Temperature: -55 to +155°C
- IP Rating (Mated): IP64
Materials
- Centre Contact: Brass
- Outer Contact: Brass
- Insulator: PTFE
- Threaded Coupling Nut: Brass
- Centre Plating Contact: Gold
- Outer Contact Plating: Nickel
- Pack Size 1
