13-001-A3-AI | 13001A3AI | TNC Solder / Top Hat Clamp Plug

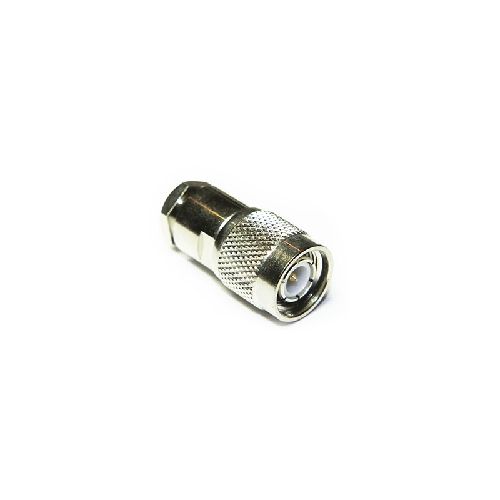

TNC 75 ohm straight clamp plug with gold plated soldered centre contact. Suitable for RG59 or similar cables in group AI.
More Information
Complete Electronics Part No. 13001A3AI
Manufacturers Part No. 13-001-A3-AI
Type Straight
Impedance 75 Ohm
Working Frequency Up To 1 GHz
Description

Electrical Specification

  • Impedance: 75 Ohm
  • Frequency Range: Up to 1GHz
  • Dielectric Withstand Voltage 1500 Veff
  • Insulation Resistance 5000 M-Ohm

Mechanical Specification

  • Design Standard: IEC 60169-17
  • RoHS3 Compliant
  • Centre Contact Termination: Solder
  • Outer Contact Termination: Clamp
  • Mating Cycles: 500
  • Contact Retention: 10N min
  • Cable Retention: 120N min
  • Weight: 17.9g
  • Mating Force: 13.6N max
  • Un-Coupling Force: 13.6N max
  • Operating Temperature: -55 to +155°C
  • IP Rating (Mated): IP64

Materials

  • Centre Contact: Brass
  • Outer Contact:   Brass
  • Insulator: PTFE
  • Threaded Coupling Nut: Brass
  • Centre Plating Contact: Gold
  • Outer Contact Plating: Nickel
  • Pack Size 1
