13-001-A3-DE | 13001A3DE | TNC Solder / Top Hat Clamp Plug

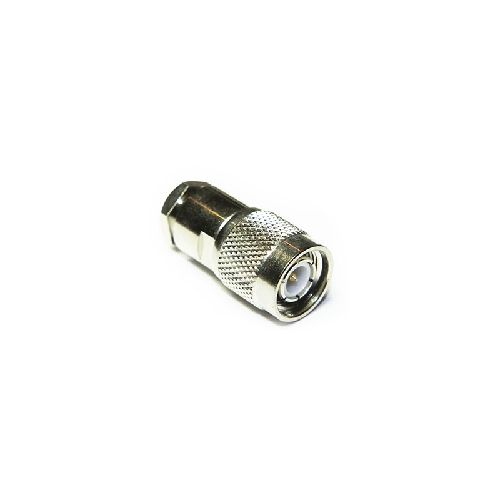

TNC 50 ohm straight clamp plug with gold plated soldered centre contact. Suitable for Times LMR®400 or similar cables in group DE
More Information
Complete Electronics Part No. 13001A3DE
Manufacturers Part No. 13-001-A3-DE
Type Straight
Impedance 50 Ohm
Working Frequency Up To 1 GHz
Description

Electrical Specification

  • Impedance: 50 Ohm
  • Frequency Range: Up to 1GHz
  • Dielectric Withstand Voltage 1500 Veff
  • Insulation Resistance 5000 M-Ohm

Mechanical Specification

  • Design Standard: IEC 60169-17
  • RoHS3 Compliant
  • Centre Contact Termination: Solder
  • Outer Contact Termination: Clamp
  • Mating Cycles: 250
  • Contact Retention: 10N min
  • Cable Retention: 150N min
  • Weight:
  • Mating Force: 13.6N max
  • Un-Coupling Force: 13.6N max
  • Operating Temperature: -55 to +155°C
  • IP Rating (Mated): IP64

Materials

  • Centre Contact: Brass
  • Outer Contact:   Brass
  • Insulator: PTFE
  • Threaded Coupling Nut: Brass
  • Centre Plating Contact: Gold
  • Outer Contact Plating: Nickel
  • Pack Size 1
