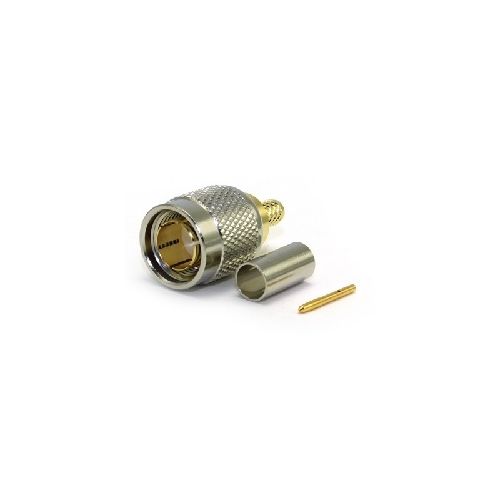

13-005-D126-FC | 13005D126FC | TNC Crimp Plug 75 ohm 12GHz
TNC Crimp / Crimp Plug 75 Ohm Contact and crimp sleeve are annealed, Centre and Outer Contacts are Gold Plated, Suitable for cables in group FC.
| Complete Electronics Part No. | 13005D126FC |
|---|---|
| Manufacturers Part No. | 13-005-D126-FC |
| Type | Straight |
| Impedance | 75 Ohm |
| Working Frequency | Ultra HD (12GHz +) |
Description
Electrical Specification
- Impedance: 75 Ohm
- Frequency Range: Up to 12GHz
- Dielectric Withstand Voltage 1500 Veff
- Insulation Resistance 5000 M-Ohm
Mechanical Specification
- Design Standard: IEC 60169-17
- RoHS3 Compliant
- Centre Contact Termination: Crimp
- Outer Contact Termination: Crimp
- Mating Cycles: 500
- Contact Retention: 10N min
- Cable Retention: 60N min
- Weight: 13.96g
- Mating Force: 13.6N max
- Un-Coupling Force: 13.6N max
- Operating Temperature: -55 to +155°C
- IP Rating (Mated): IP64
Materials
- Centre Contact: Brass
- Outer Contact: Brass
- Insulator: PTFE
- Threaded Coupling Nut: Brass
- Centre Plating Contact: Gold
- Outer Contact Plating: Gold
- Pack Size 1
