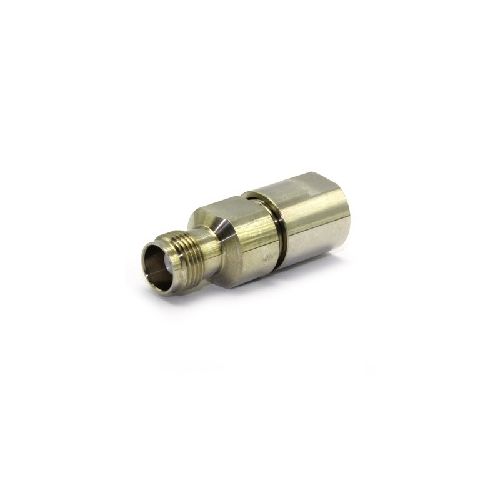

13-052-P3-RB | 13052P3RB | TNC Easy Fit / Clamp Jack
TNC 50 ohm straight Easy Fit ( Push On ) Contact with a Double Nut Type Clamp System jack, For SCF14-50J Helix Cable
| Complete Electronics Part No. | 13052P3RB |
|---|---|
| Manufacturers Part No. | 13-052-P3-RB |
| Type | Straight |
| Impedance | 50 Ohm |
| Working Frequency | Up To 3 GHz |
Description
Electrical Specification
- Impedance: 50 Ohm
- Frequency Range: Up to 3GHz
- Dielectric Withstand Voltage 1500 Veff
- Insulation Resistance 5000 M-Ohm
Mechanical Specification
- Design Standard: IEC 60169-17
- RoHS3 Compliant
- Centre Contact Termination: Easy Fit
- Outer Contact Termination: Clamp
- Mating Cycles: 500
- Contact Retention: 10N min
- Cable Retention: 100N min
- Weight: 40.07g
- Mating Force: 13.6N max
- Un-Coupling Force: 13.6N max
- Operating Temperature: -30 to +70°C
- IP Rating (Mated): IP64
Materials
- Centre Contact: Phosphor Bronze
- Outer Contact: Brass
- Insulator: PTFE
- Centre Plating Contact: Silver
- Outer Contact Plating: White Bronze
- Pack Size 1
