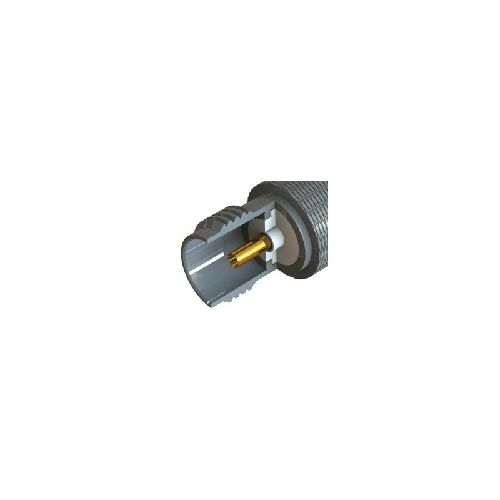

13-055-A3-AB | 13055A3AB | TNC Straight Crimp Jack

TNC 75 ohm straight full crimp jack. Contact and crimp sleeve are annealed, Suitable for RG179 or similar cables in group AB.
More Information
Complete Electronics Part No. 13055A3AB
Manufacturers Part No. 13-055-A3-AB
Type Straight
Impedance 75 Ohm
Working Frequency Up To 1 GHz
Description

Electrical Specification

  • Impedance: 75 Ohm
  • Frequency Range: Up to 1GHz
  • Dielectric Withstand Voltage 1500 Veff
  • Insulation Resistance 5000 M-Ohm

Mechanical Specification

  • Design Standard: IEC 60169-17
  • RoHS3 Compliant
  • Centre Contact Termination: Crimp
  • Outer Contact Termination: Crimp
  • Mating Cycles: 250
  • Contact Retention: 10N min
  • Cable Retention: 60N min
  • Weight:
  • Mating Force: 13.6N max
  • Un-Coupling Force: 13.6N max
  • Operating Temperature: -30 to +70°C
  • IP Rating (Mated): IP64

Materials

  • Centre Contact: Phosphor Bronze
  • Outer Contact:   Brass
  • Insulator: Delrin
  • Centre Plating Contact: Gold
  • Outer Contact Plating: Nickel
  • Pack Size 1
