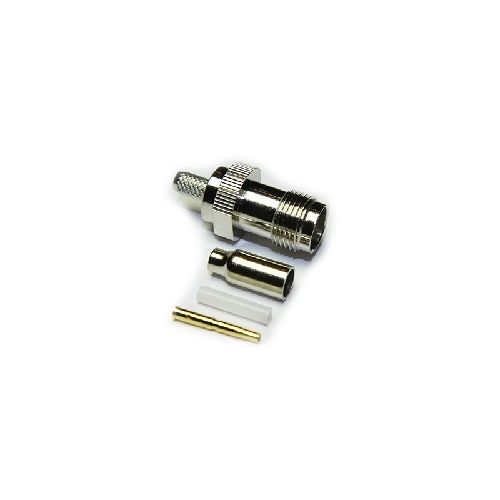

13-055-A3-AD | 13055A3AD | TNC Straight Crimp Jack

TNC 50 ohm straight full crimp jack. Contact and crimp sleeve are annealed, Suitable for RG316 or similar cables in group AD.
More Information
Complete Electronics Part No. 13055A3AD
Manufacturers Part No. 13-055-A3-AD
Type Straight
Impedance 50 Ohm
Working Frequency Up To 6GHz
Description

Electrical Specification

  • Impedance: 50 Ohm
  • Frequency Range: Up to 6GHz
  • Dielectric Withstand Voltage 1500 Veff
  • Insulation Resistance 5000 M-Ohm

Mechanical Specification

  • Design Standard: IEC 60169-17
  • RoHS3 Compliant
  • Centre Contact Termination: Crimp
  • Outer Contact Termination: Crimp
  • Mating Cycles: 500
  • Contact Retention: 10N min
  • Cable Retention: 100N min
  • Weight: 14.23g
  • Mating Force: 13.6N max
  • Un-Coupling Force: 13.6N max
  • Operating Temperature: -30 to +70°C
  • IP Rating (Mated): IP64

Materials

  • Centre Contact: Phosphor Bronze
  • Outer Contact:   Brass
  • Insulator: Delrin
  • Centre Plating Contact: Gold
  • Outer Contact Plating: Nickel
  • Pack Size 1
